PalmSens3 battery replacement

The following procedure describes how to replace the battery on your PalmSens3.

Required tools

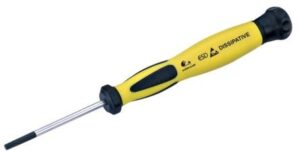

  • Torx T10 screw driver
  • small flathead screw driver
  • Blue Lemo tool (DCH.91.121.PA-ND) for the sensor connector nut

1

Remove the LEMO nut using the special LEMO tool.

2

Remove both Torx screws.

3

Replace the battery.

The black tape around the end works as a strain relief.

4

Make sure the grounding rings are placed correctly before placing the side panel back on.

5

Screw the sensor side panel to the housing. Make sure to tighten the screws.

Tighten the LEMO-nut firmly, but DON’T use TOO much force.
