Software

PSTrace software is shipped as standard with all single channel and multiplexed instruments. The software provides support for all techniques and device functionalities.

Easy and versatile

Dedicated modes make PSTrace easy to use. The Scientific mode allows you to run all the techniques our instruments have to offer, whereas the Corrosion and Analytical modes provide a specific set of techniques and tools.

Advanced electrochemistry

Create a complex series of experiments using the Scripting window. The Scripting window allows for automated batch measurements and analysis.

One-click export to Excel

If you feel more comfortable using your own spreadsheets, use the one-click export to Excel. Or export your data to Origin or Matlab.

Easy and versatile

PSTrace is designed to be productive immediately after installation, without going through a long learning period. It has three modes; the Scientific mode which allows you to run all the techniques our instruments have to offer, and two dedicated modes for Corrosion analysis and the Analytical Mode. The Analytical Mode is designed for use with (bio)sensors and allows you to do concentration determinations. Extensive help files and prompts guide the user through a typical analysis.

Making it easy for simple measurements doesn’t mean we compromised on advanced electrochemistry. To create a complex series of experiments a scripting window can be used. The Scripting window allows for automated batch measurements and analysis. The interactive plot and a ‘head-up-display’ of peaks when hovering over the peak location made also the post-measurement part of electrochemistry just quicker and easier. But if you feel more comfortable using your own spreadsheets, you can use the one-click export to Excel. Or you can export your data to Origin or Matlab.

PSTrace Method Editor

Setting up your measurement

The method editor provides instant feedback on parameters that are either invalid or do not match the instruments capabilities:

Measurement data

All measurement data and curves are stored in a single .pssession file. Peaks are detected automatically or can be marked by hand. Exporting data to Excel including generation of a native Excel graph is a matter of a single click.

Scientific mode

Default mode to run all supported electrochemical techniques.

Corrosion mode

Allows the user to run specific corrosion measurement techniques and use analytical tools for corrosion research on the measurement data.

Analytical mode

This mode is made to convert your data quickly into physical properties.

Scientific mode

Scientific mode

This mode allows you to run all the techniques our instruments have to offer and is great for performing all type of measurements.

Voltammetric
LSV, CV, FCV, ACV
Pulsed
DPV, SWV, NPV
Amperometric
CA, MSA, FA, PAD, MPA
Potentiometric
OCP, CP, LSP, MSP, SC
Coulometric
CC
Impedance
EIS, GEIS
Mixed Mode

Corrosion mode

Corrosion mode

This mode is made to convert your data quickly into physical properties. It comprises a straight forward modelling package with a dedicated tab to describe the physical properties of the material such as surface area.

Potentiostatic
Galvanostatic
Linear Polarization
Cyclic Polarization
Corrosion Potential
Impedance Spectroscopy

Interacting with the plot and results is focused to corrosion analysis, so Tafel Plots and the common corrosion modelling functions such as the Stern-Geary equation are done with a few clicks.

Analytical mode

Analytical mode

The Analytical Mode is designed for use with (bio)sensors and allows you to do concentration determinations. Extensive help files and prompts guide the user through a typical analysis.

Analytical mode provides a template for all the functions to perform analysis on unknown samples or calibration of electrodes. Quantitative analysis according to the standard addition method or a calibration curve is performed in a few easy steps.

Even multiple analytes are possible. The results window then provides the platform to complete the analysis, and calculate the results and statistical variations of them. The Analytical mode is perfect for everyone, who wants to save time during their quantitative analysis.

Equivalent Circuit Fitting tool integrated in PSTrace

PSTrace comes standard with an integrated window for Equivalent Circuit Fitting. Drawing your circuit and fitting your data has never been easier. The interface allows you to quickly draw or change the circuit design. The circuit and fitted data are automatically saved with your .pssession data file.

The circuit editor can be used in different modes:

  • Edit mode; draw the circuit or type CDC circuit
  • Fit mode; fit the EIS data on the circuit
  • Simulation mode; run simulations on circuits

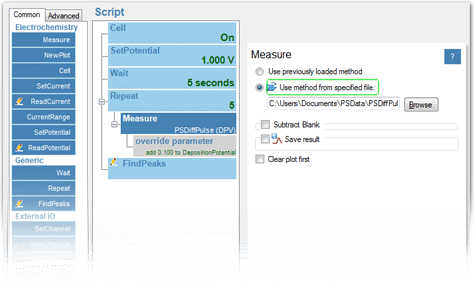

Scripting

You can create automated complex experiments with this highly versatile component-rich control for automated and batch analysis. In the Scripting window, you can easily arrange your command blocks for automated saving. These command blocks include (nested) repeat blocks, blank subtraction, peripheral control, peak data saving and many more to create your own automated procedures.

Automation of all your methods leads to more stable results and frees up user time for other tasks. Complex electrochemical procedures such as pseudo-polarography can be simplified with higher functions such as deposition potential override.

Learn how to use PSTrace

Tutorial videos

PSTrace is a software package that controls PalmSens potentiostats. In 20+ videos our electrochemist explains how to use PSTrace, perform popular measurements like CV, CA and EIS. You will also learn how to use the multiplexer, a stirrer, use scripting to automate your measurements and many more topics. Start on the left with learning how to perform your first electrochemical measurement with in PSTrace.

Minimum system requirements

  • Windows 7 or later (32-bit or 64-bit)
  • 1 gigahertz (GHz) or faster 32-bit (x86) or 64-bit (x64) processor
  • 2 GB RAM (32-bit) or 4 GB RAM (64-bit)
