Galvanic Isolation Dongle

Brings floating capability to the ground potential

  • Isolates your potentiostat’s ground from your PC’s ground
  • Compatible with USB-powered potentiostats
  • Over Current Protection
Clear
You'll usually get an answer to your quotation request within one business day.

Description

Isolates the ground lead, enabling the ground potential to float freely.

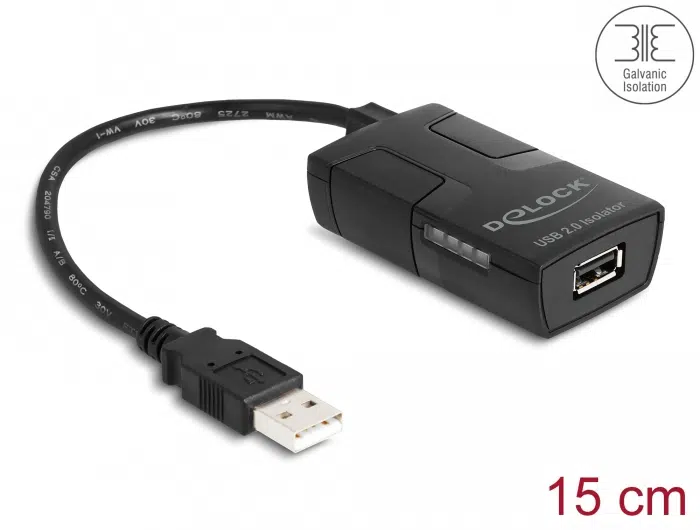

The Galvanic Isolation Dongle is placed between your PC and the USB cable connected to your potentiostat, ensuring a floating system. This allows the potentiostat’s ground potential to float independently from the USB port ground. This feature is essential for specific applications, such as grounded cells and polypotentiostat setups. Refer to this application note for further details.

We offer two versions of this product:

Basic Version

Requires only a USB port. It is compatible with:

  • EmStat3
  • EmStat4S LR, EmStat4R, EmStat4X LR
  • EmStat Pico Development Kit
  • PalmSens3
  • PalmSens4 without Bipotentiostat and/or iR-compensation module(s)
  • Sensit BT, Sensit Wearable

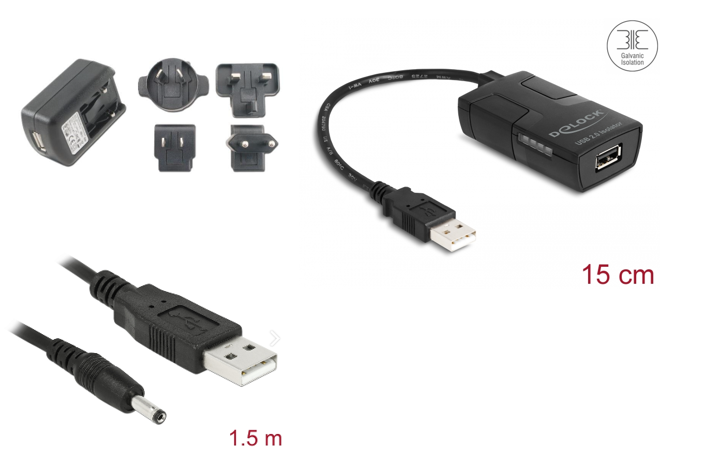

Extended Power Version

In addition to the models listed above, this version is also compatible with:

  • EmStat3+
  • EmStat4S HR, EmStat4X HR
  • PalmSens4C
  • PalmSens4 with Bipotentiostat and/or iR-compensation module(s)

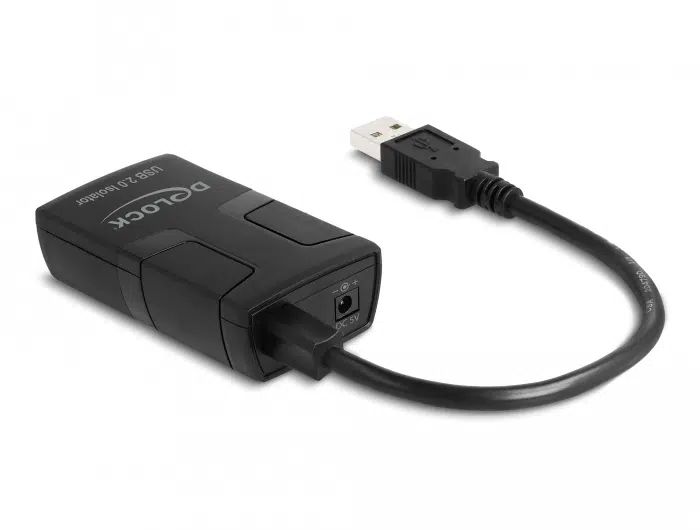

It is not compatible with multi-channel potentiostats. If additional power is required for any other reason, we recommend selecting the Extended Power version anyway. This model includes an extra power input (barrel plug), allowing the dongle to support higher power demands. It comes with a power cable and an AC adapter, 100-250 VAC, 50-60 Hz. If AC power is unavailable, a power bank (not included) can be used as an alternative power source.

Notice for Extended Power Version
Do not plug the extra power USB cable into a grounded USB port. While power will still be supplied, the floating capability will be lost.

Ref. Basic Version GI-USB_ST, Extended Power Version GI-USB_EP
