Micrux SPE with 2 Working Electrodes
Dual-WE SPE with RE separated from the CE
- 4-electrodes system: WE1, WE2, RE and CE
- Flexible and highly-resistant PET as substrate
- Micrux 4-pin connection
PalmSens usually responds to your quotation request within one business day.
Description

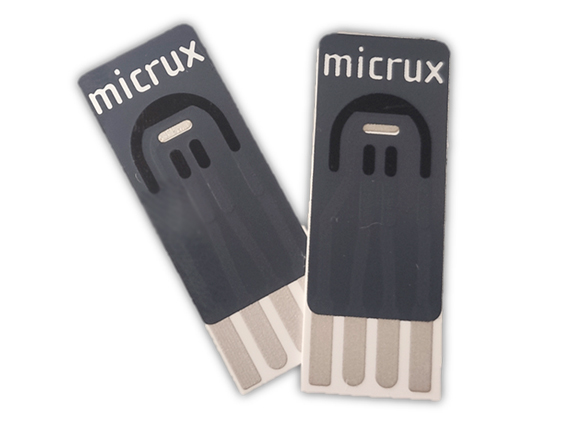

Dual screen-printed electrodes are based on a four-electrodes approach with two working electrodes (WE1 / WE2), sharing a reference (RE) and an auxiliary (counter) (AE or CE) electrode independent from the RE. A very affordable solution suitable for the development of multiplexed chemical-sensors and bio-sensors for field analysis.
The material of the working and counter electrode is made from carbon with a high-performance ink. The reference electrode is silver-made. The carbon layer is 350~380 μm thick. The working electrode has a diameter of 2.5 mm for the dual SPEs.
Sensors are packed per 50 in a box. You can connect a Micrux screen-printed electrode using the Micrux 4-electrode adapter.
More information is available at the specifications tab or here for the dual-WE SPE.
Ref. MX-ED-D2PE-C10
Required adapter
A Micrux adapter is needed to connect the 4-pin sensors
You may also like…
Specifications
-
Brand
-
Sensor type
-
Amount of WEs
-
WE material
-
WE/CE material
-
RE material
-
Support material
-
CE material
-
Electrode system
-
Combined RE and CE
-
Support dimensions / mm
-
Possible applications
-
Surface modification
