BASi Fully Equipped H-Cell Kit

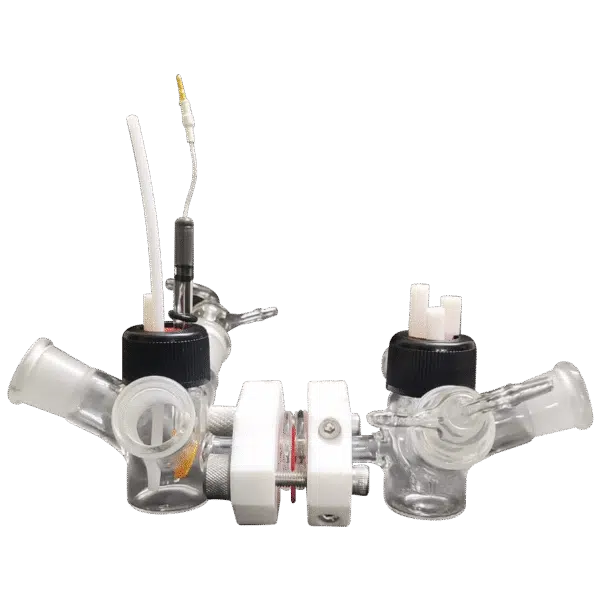

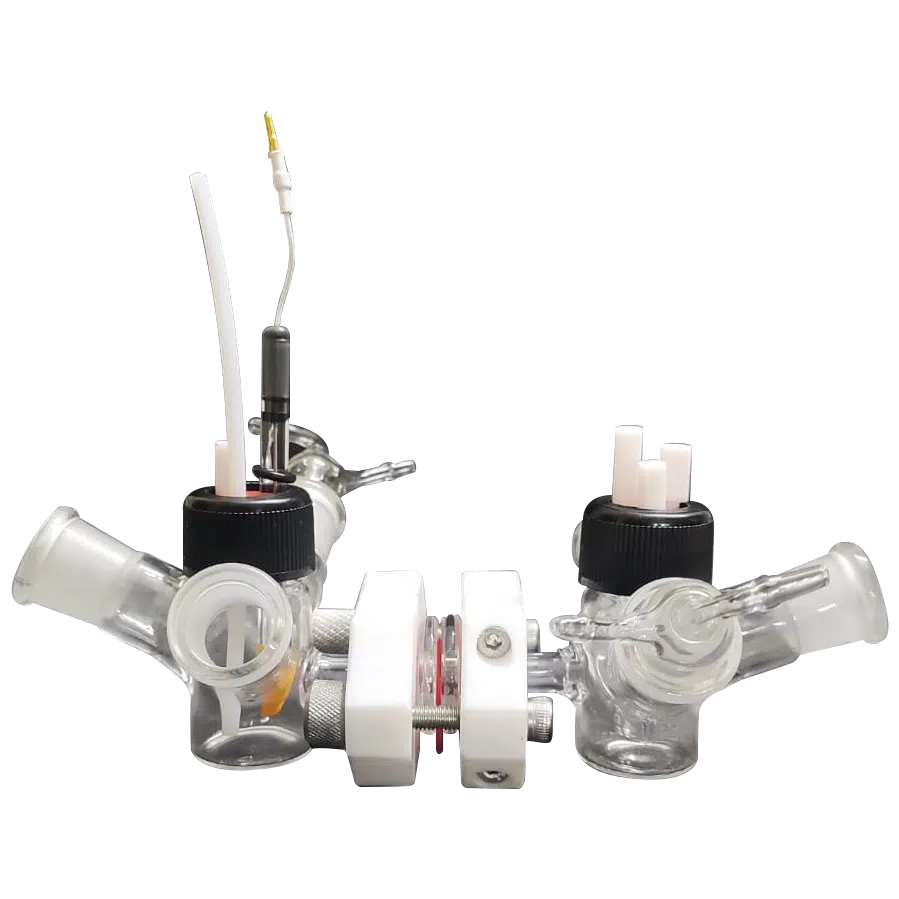

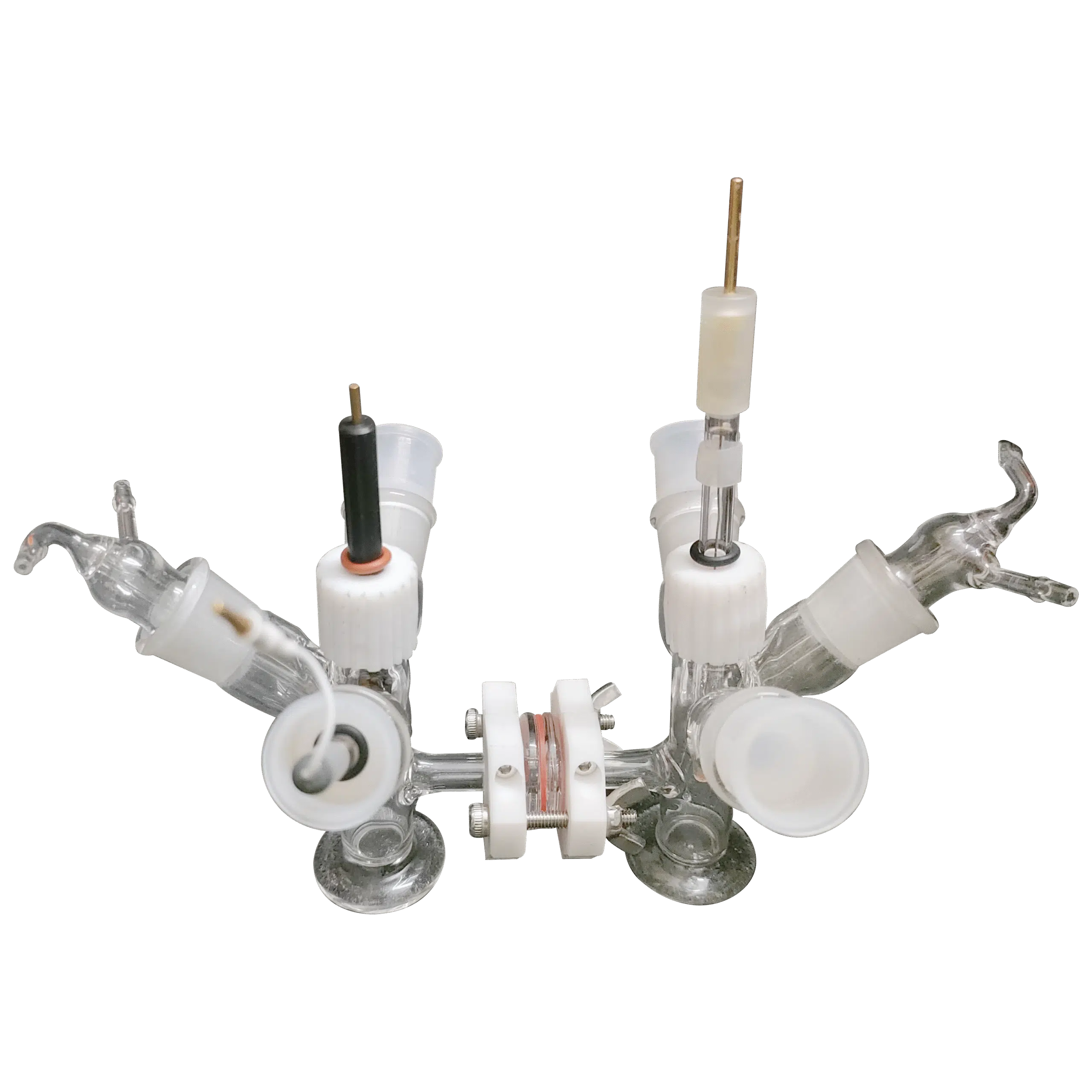

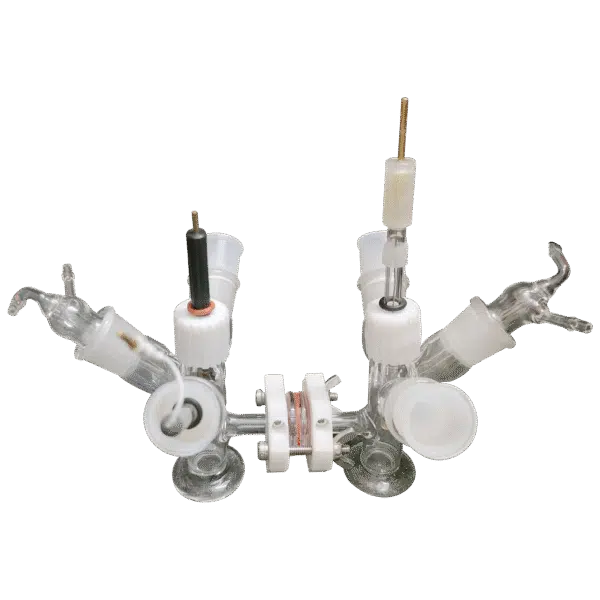

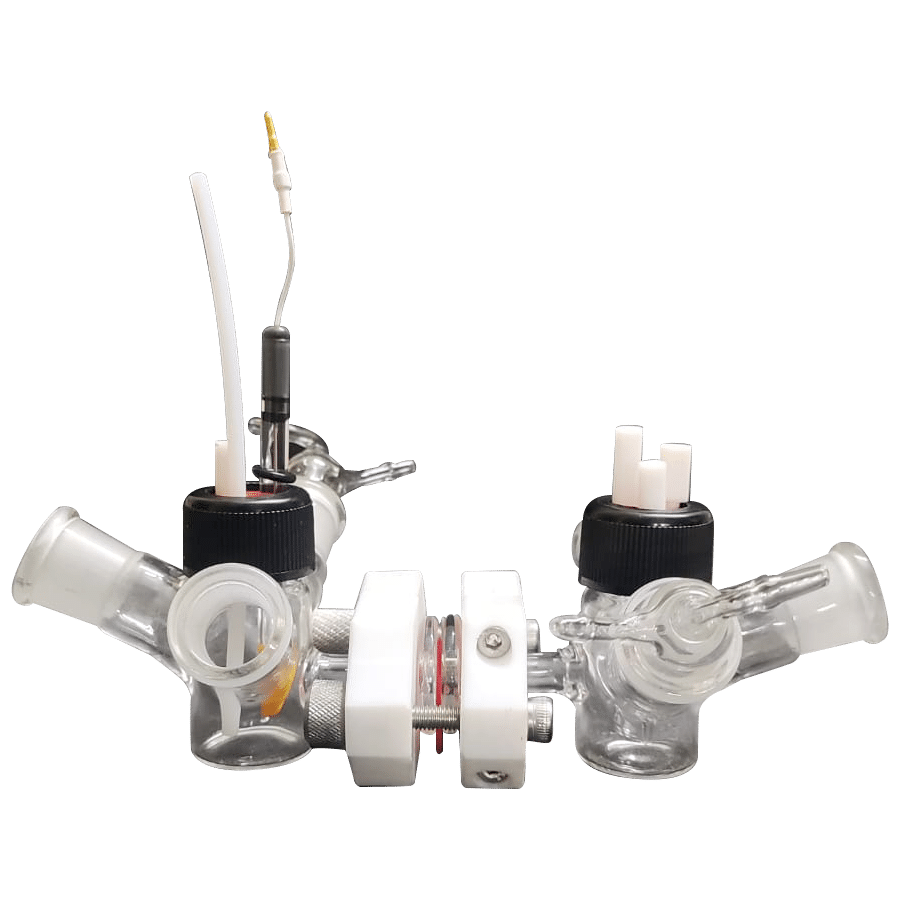

Dual-compartment electrochemical H-Cell setup
- Gas-tight
- Two separate chambers

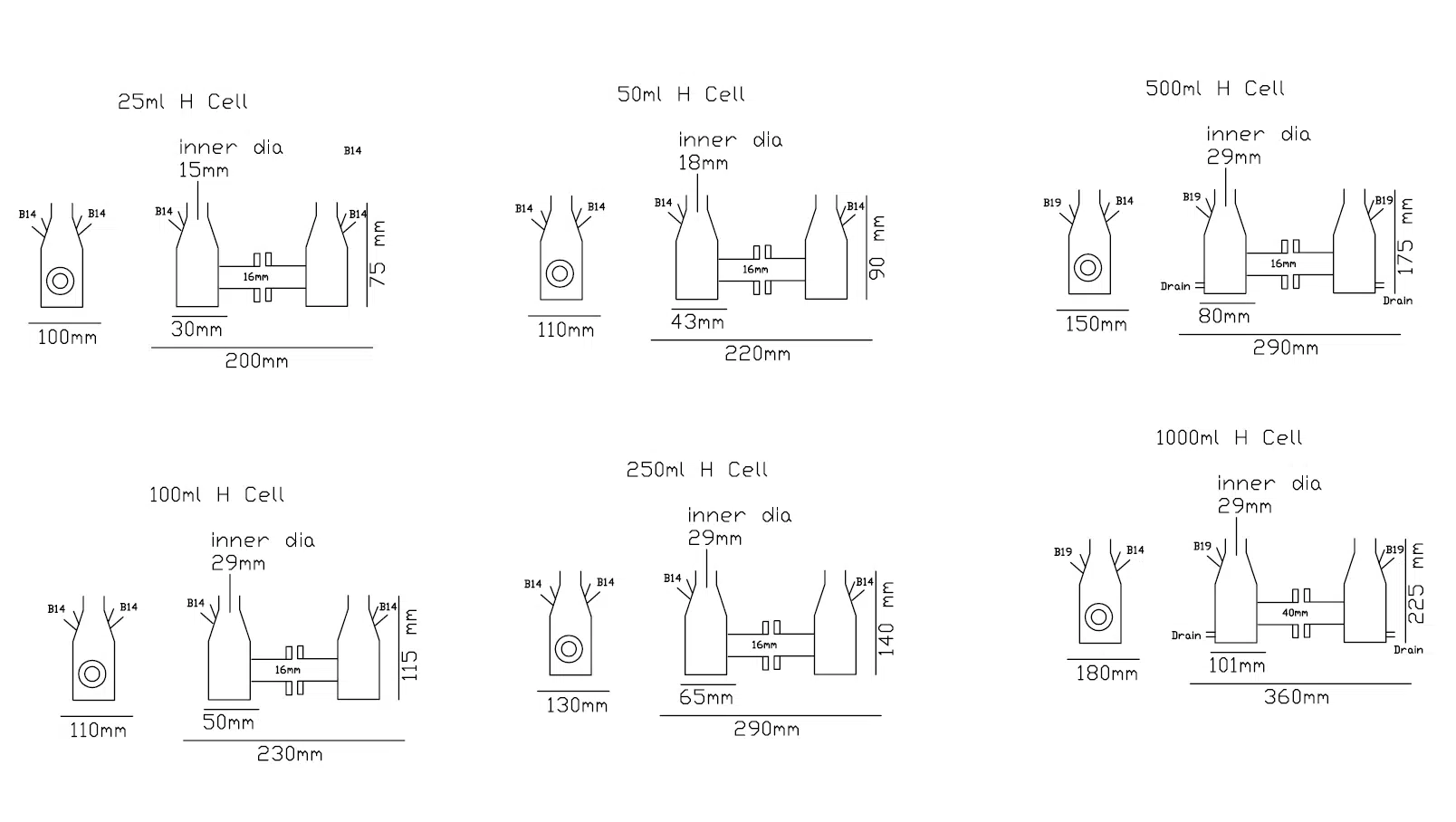

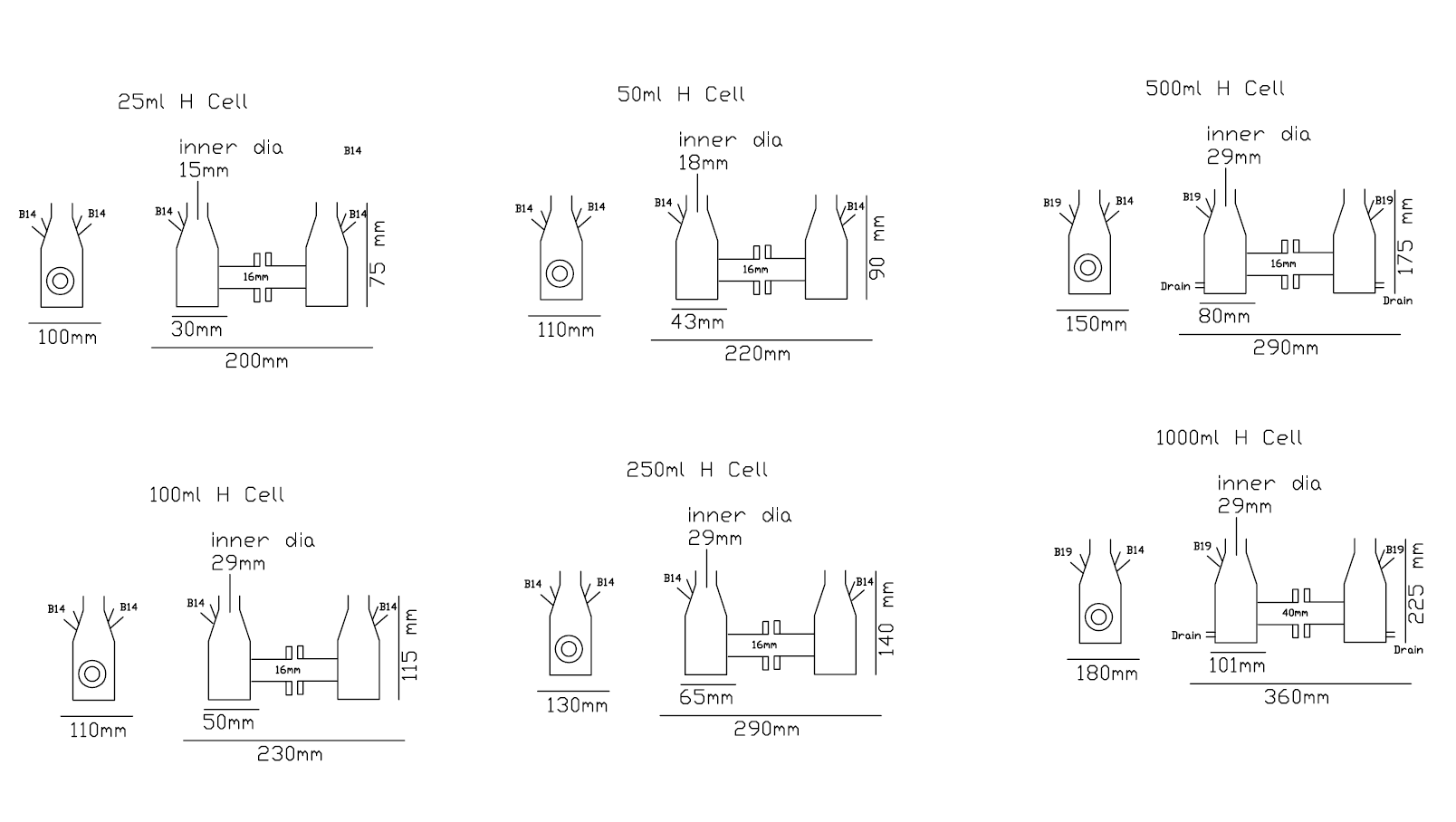

- Different capacity options (each compartment): 5, 10, 25, 50, 100, 250, 500 or 1000 mL
You'll usually get an answer to your quotation request within one business day.
Description

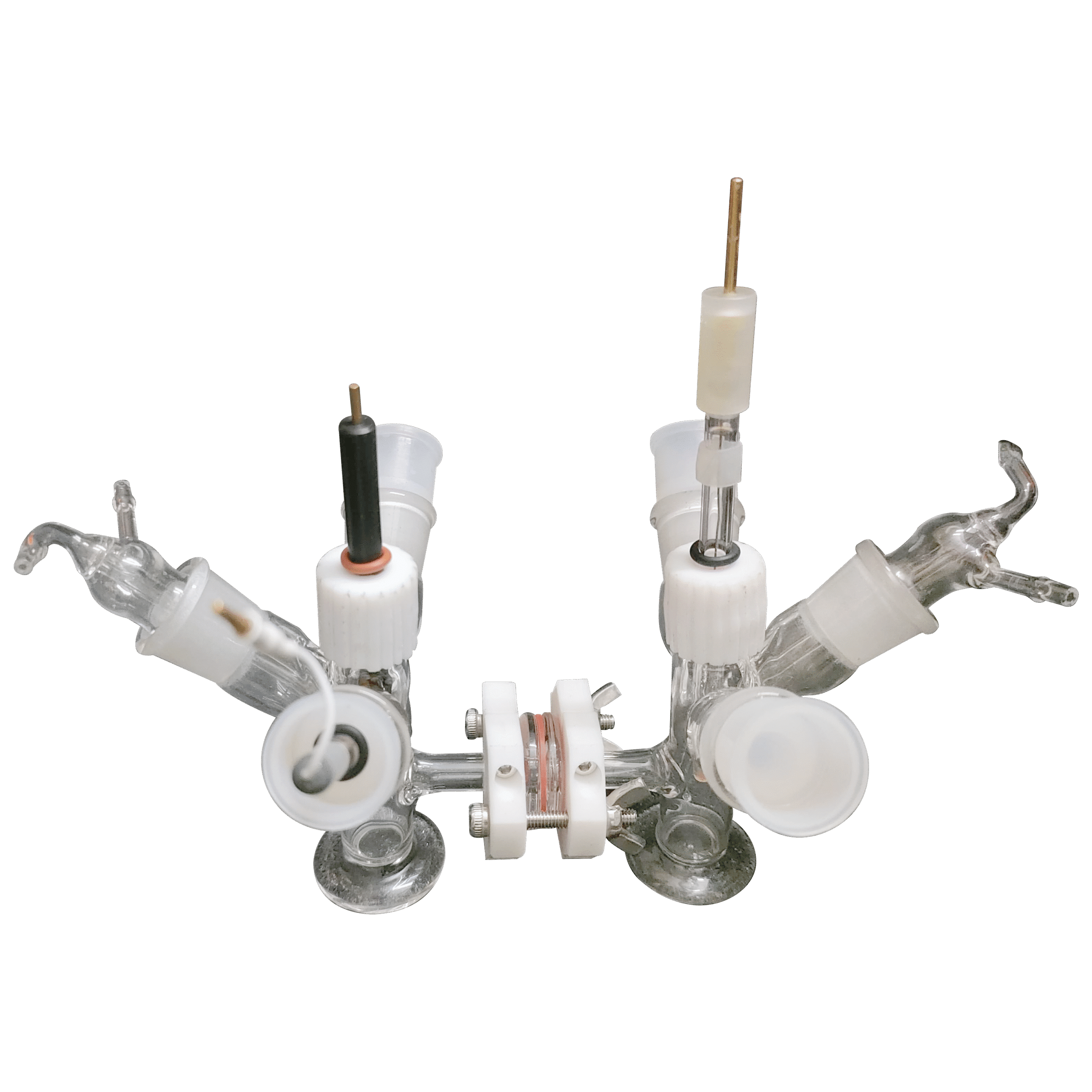

The IP-HC-## is a fully equipped, horizontally mounted and a dual compartment electrochemical H-Cell set-up for a wide variety of studies that require a separate compartment for counter and / or reference electrodes. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers can be separated with an ion-exchange membrane (DuPont’s Nafion® membrane – not included in the price), so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode. Set-up is compatible with a PalmSens potentiostat.
Wet Parts
Glass & silicon and thus, no limitations due to pH of electrolyte.
Includes
Glass reservoirs with three-electrode set-up (2),
- Spacer (2)
- Grip nuts (2)
- Screws (2)

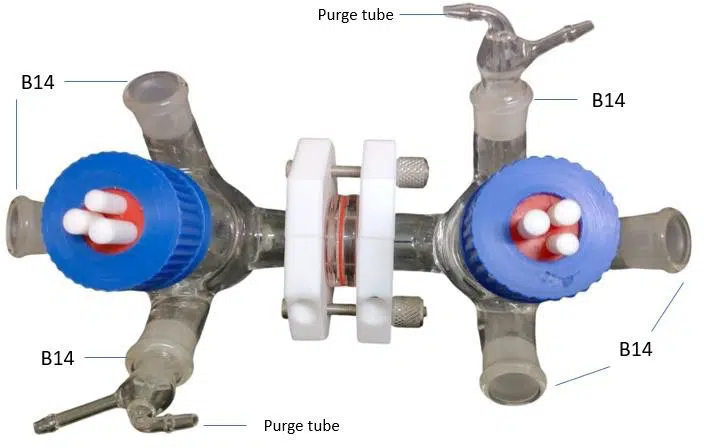

- Purge adaptor (2)

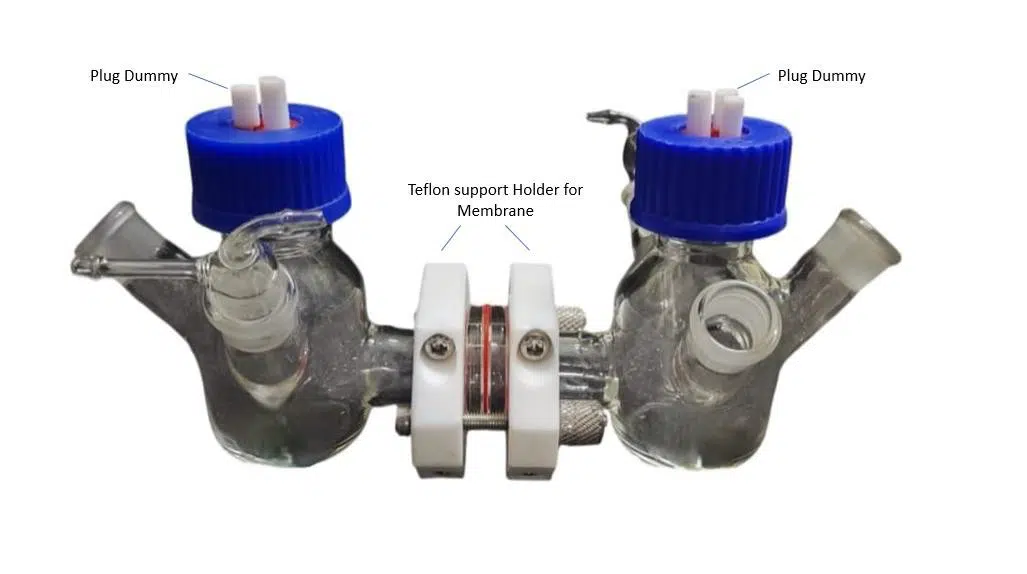

- Teflon support holder (2)
- Top silicon dummy (4)
- Plugs (6)
- Silicon tube 0.5 meters (4)
- Silicon septa (6)
Related applications
- Electrochemical water splitting – HER / OER or any such electrocatalysis applications
- Redox flow battery setup
- Electrochemical synthesis / Hydrogen Production
- Carbon Dioxide Reduction Studies
- Membrane research: Proton conductivity, Ionic conductivity, membrane efficiency
- Reference electrode testing
- ASTM grade Corrosion studies – Hydrogen Permeation
- Fuel Cell Studies: Hydrogen peroxide fuel cell, enzymatic fuel cell research, microbial fuel cell research, etc.
Specifications
-
Brand
-
Accessory type
-
Compatible with
EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT
-
Capacity
-
Body / coat material
-
Electrolyte type
Downloads
| Name | Type | Last updated | |
|---|---|---|---|
| H-Cells for CO2 Reduction Electrocatalysis Studies and New Materials Research This application guide from our partner BASi shows Pre-configured Customized Kits with Low Volume H-Cells to Conduct Advanced Level Carbon Dioxide Reduction Electrocatalysis Studies and New Materials Research. | Application Note | 25-06-25 | |
| ASTM G148-97 – Hydrogen Permeation Measurements Using Devnathan-Stachursky type H-cell Set-up This application guide from our partner BASi shows Hydrogen Permeation Measurements using a Devnathan-Stachursky type H-cell Set-up. This guide complies with ASTM G148-97. | Application Note | 25-06-25 | |
| Tehcnical sheet BASI IP-HC: Fully Equipped H-Cell Kit 5 and 10 mL versions This file contains technical information of BASi H-Cells versions 5 mL (BASI-IP-HC-5) and 10 mL (BASI-IP-HC-10) | Documentation | 24-06-25 | |
| Manual BASI IP-HC: Fully Equipped H-Cell Kit The IP-HC-50 is a fully equipped, horizontally mounted and a dual compartment electrochemical. This manual contains information about the models from 25 to 1000 mL. | Datasheet | 24-06-25 | |
| Brochure BASI IP-HC: Fully Equipped H-Cell Kit The IP-HC-50 is a fully equipped, horizontally mounted and a dual compartment electrochemical | Documentation | 08-05-23 |
