BVT SPE with single Working Electrode

A basic low cost amperometric sensor of a thick-film electrode with 30 possible material combinations

  • Three-electrode system
  • Thick-film technology
  • Same material for working and counter electrode
PalmSens usually responds to your quotation request within one business day.

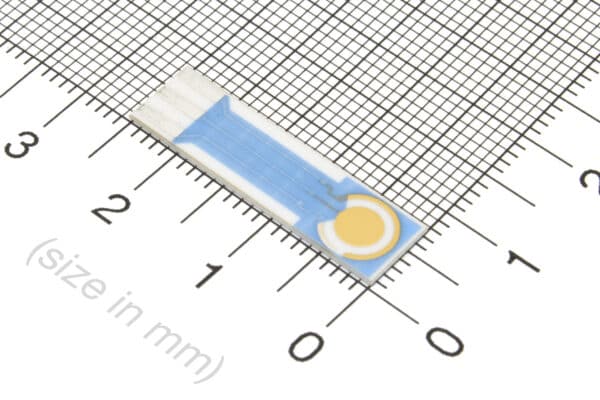

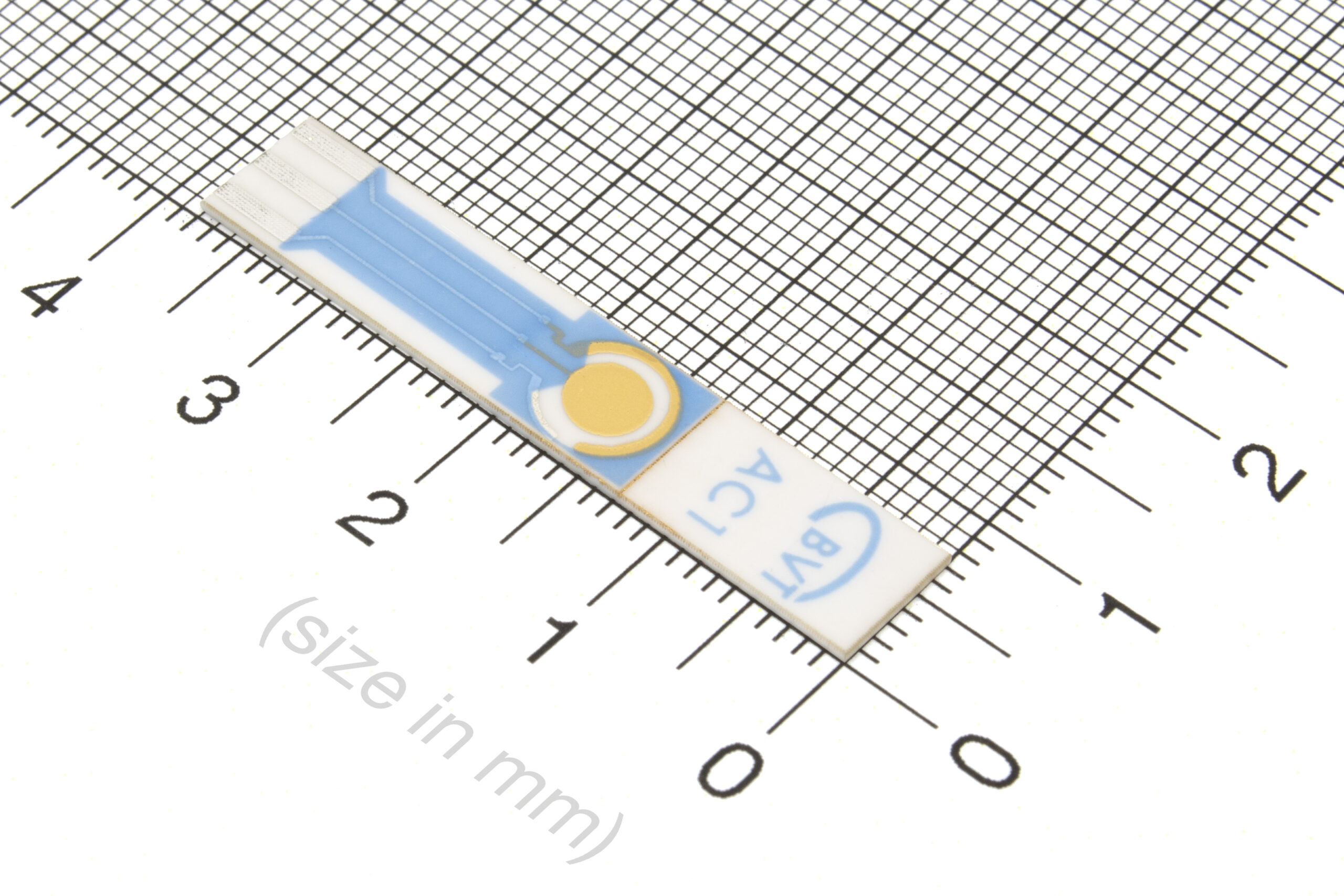

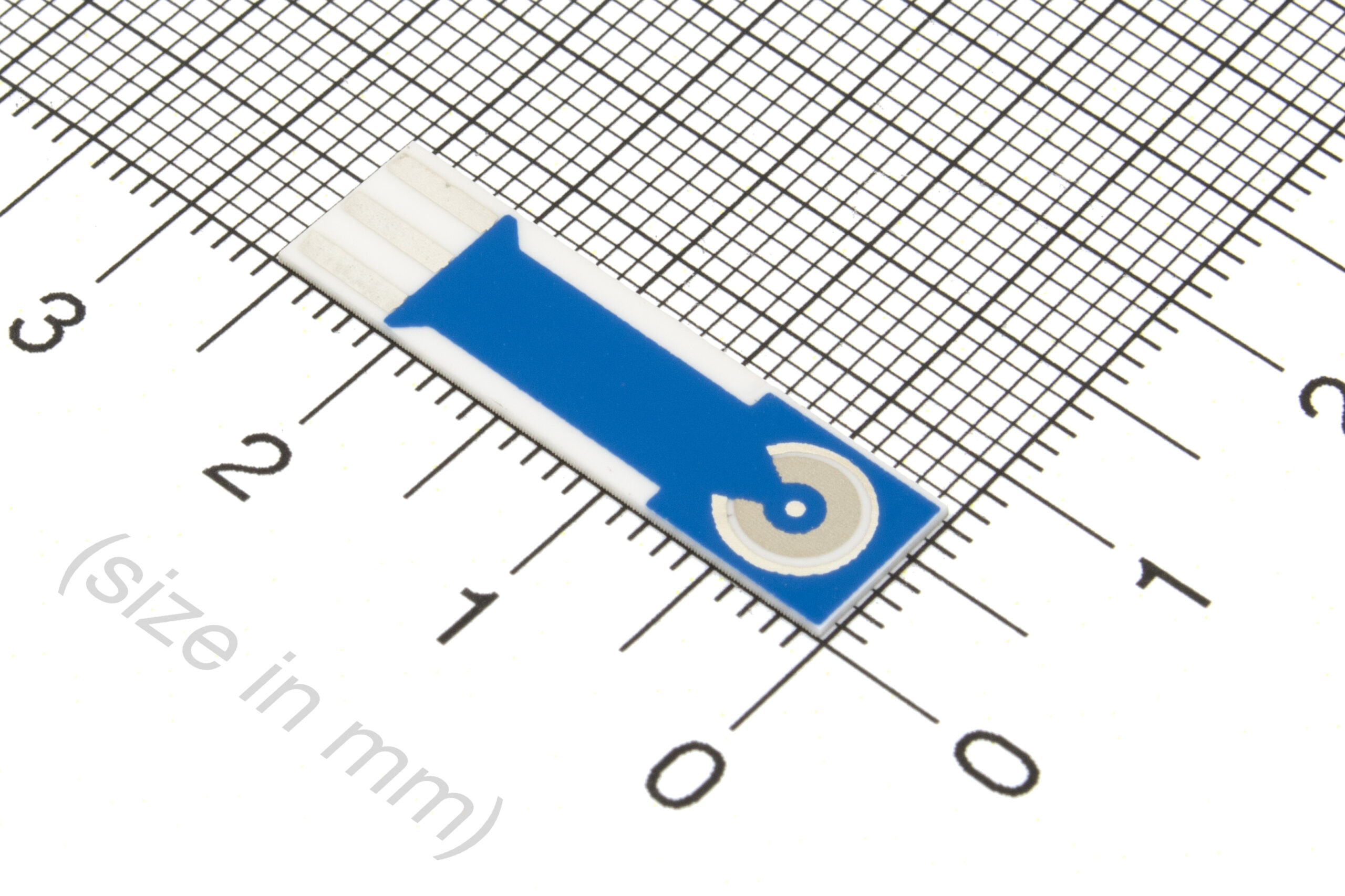

The BVT AC1 series sensor is formed on a corundum ceramic base. On this surface the working, the reference and the counter electrodes are applied. The working and the counter electrodes can be made of variety of materials. A bio-chemically active substance can be immobilized on the working electrode of the sensor to create a biosensor.

The Working and Counter electrode can be made of:

  • WS Gold Platinum-alloy
  • W1 Gold
  • W2 Platinum
  • W3 Silver
  • W4 Carbon

Note for Gold electrodes: The SPEs do not have homogenous properties during print. Each production batch is grouped in boxes, where the SPEs with the same properties are in one box.

The reference electrode can be made of three different materials:

  • R1 Ag / AgCl mixed – a nice basic reference electrode
  • R2 Ag covered with AgCl – shows a higher stability. Suitable for most organic solvents.
  • RS Ag – these give a stable potential in chloride solution but can also be used a pseudo reference electrode

Working electrode diameter

  • 1mm Standard diameter
  • 2mm Larger working electrode (for carbon electrodes this will result in 2.4 ±0.1 mm)

Electrode naming pattern

  • The electrodes are named in the pattern AC1.Wn.Rm with n and m being 1, 2, 3, 4 or S.


  • 25.4 x 7.26 x 0.63 mm.

More information


WE material RE material WE diammeter Product Reference
Gold Ag/AgCl (65%/35%) 1 mm BVT-AC1.W1.R1.DW1
Gold Ag/AgCl (65%/35%) 2 mm BVT-AC1.W1.R1.DW2
Gold Ag/AgCl (65%/35%) 4 mm BVT-AC1.W1.R1.DW4
Gold Ag covered with AgCl 1 mm BVT-AC1.W1.R2.DW1
Gold Ag covered with AgCl 2 mm BVT-AC1.W1.R2.DW2
Gold Ag covered with AgCl 4 mm BVT-AC1.W1.R2.DW4
Gold Ag (98%) 1 mm BVT-AC1.W1.RS.DW1
Gold Ag (98%) 2 mm BVT-AC1.W1.RS.DW2
Gold Ag (98%) 4 mm BVT-AC1.W1.RS.DW4
Platinum Ag/AgCl (65%/35%) 1 mm BVT-AC1.W2.R1.DW1
Platinum Ag/AgCl (65%/35%) 2 mm BVT-AC1.W2.R1.DW2
Platinum Ag/AgCl (65%/35%) 4 mm BVT-AC1.W2.R1.DW4
Platinum Ag covered with AgCl 1 mm BVT-AC1.W2.R2.DW1
Platinum Ag covered with AgCl 2 mm BVT-AC1.W2.R2.DW2
Platinum Ag covered with AgCl 4 mm BVT-AC1.W2.R2.DW4
Platinum Ag (98%) 1 mm BVT-AC1.W2.RS.DW1
Platinum Ag (98%) 2 mm BVT-AC1.W2.RS.DW2
Platinum Ag (98%) 4 mm BVT-AC1.W2.RS.DW4
Silver Ag/AgCl (65%/35%) 1 mm BVT-AC1.W3.R1.DW1
Silver Ag/AgCl (65%/35%) 2 mm BVT-AC1.W3.R1.DW2
Silver Ag/AgCl (65%/35%) 4 mm BVT-AC1.W3.R1.DW4
Silver Ag covered with AgCl 1 mm BVT-AC1.W3.R2.DW1
Silver Ag covered with AgCl 2 mm BVT-AC1.W3.R2.DW2
Silver Ag covered with AgCl 4 mm BVT-AC1.W3.R2.DW4
Silver Ag (98%) 1 mm BVT-AC1.W3.RS.DW1
Silver Ag (98%) 2 mm BVT-AC1.W3.RS.DW2
Silver Ag (98%) 4 mm BVT-AC1.W3.RS.DW4
Carbon Ag/AgCl (65%/35%) 1 mm BVT-AC1.W4.R1.DW1
Carbon Ag/AgCl (65%/35%) 2 mm BVT-AC1.W4.R1.DW2
Carbon Ag/AgCl (65%/35%) 4 mm BVT-AC1.W4.R1.DW4
Carbon Ag covered with AgCl 1 mm BVT-AC1.W4.R2.DW1
Carbon Ag covered with AgCl 2 mm BVT-AC1.W4.R2.DW2
Carbon Ag covered with AgCl 4 mm BVT-AC1.W4.R2.DW4
Carbon Ag (98%) 1 mm BVT-AC1.W4.RS.DW1
Carbon Ag (98%) 2 mm BVT-AC1.W4.RS.DW2
Carbon Ag (98%) 4 mm BVT-AC1.W4.RS.DW4
Platinum-gold alloy Ag/AgCl (65%/35%) 1 mm BVT-AC1.WS.R1.DW1
Platinum-gold alloy Ag/AgCl (65%/35%) 2 mm BVT-AC1.WS.R1.DW2
Platinum-gold alloy Ag/AgCl (65%/35%) 4 mm BVT-AC1.WS.R1.DW4
Platinum-gold alloy Ag covered with AgCl 1 mm BVT-AC1.WS.R2.DW1
Platinum-gold alloy Ag covered with AgCl 2 mm BVT-AC1.WS.R2.DW2
Platinum-gold alloy Ag covered with AgCl 4 mm BVT-AC1.WS.R2.DW4
Platinum-gold alloy Ag (98%) 1 mm BVT-AC1.WS.RS.DW1
Platinum-gold alloy Ag (98%) 2 mm BVT-AC1.WS.RS.DW2
Platinum-gold alloy Ag (98%) 4 mm BVT-AC1.WS.RS.DW4
