    Magnetic Stirrer with Switchbox

    Connects directly to your instrument

    • Connects to your potentiostat
    • Controlled via PSTrace
    • Can be used in scripts
    Clear
    PalmSens usually responds to your quotation request within one business day.
    Add to quotation

    Description

    With this equipment automation of your experiment is taking the next step.

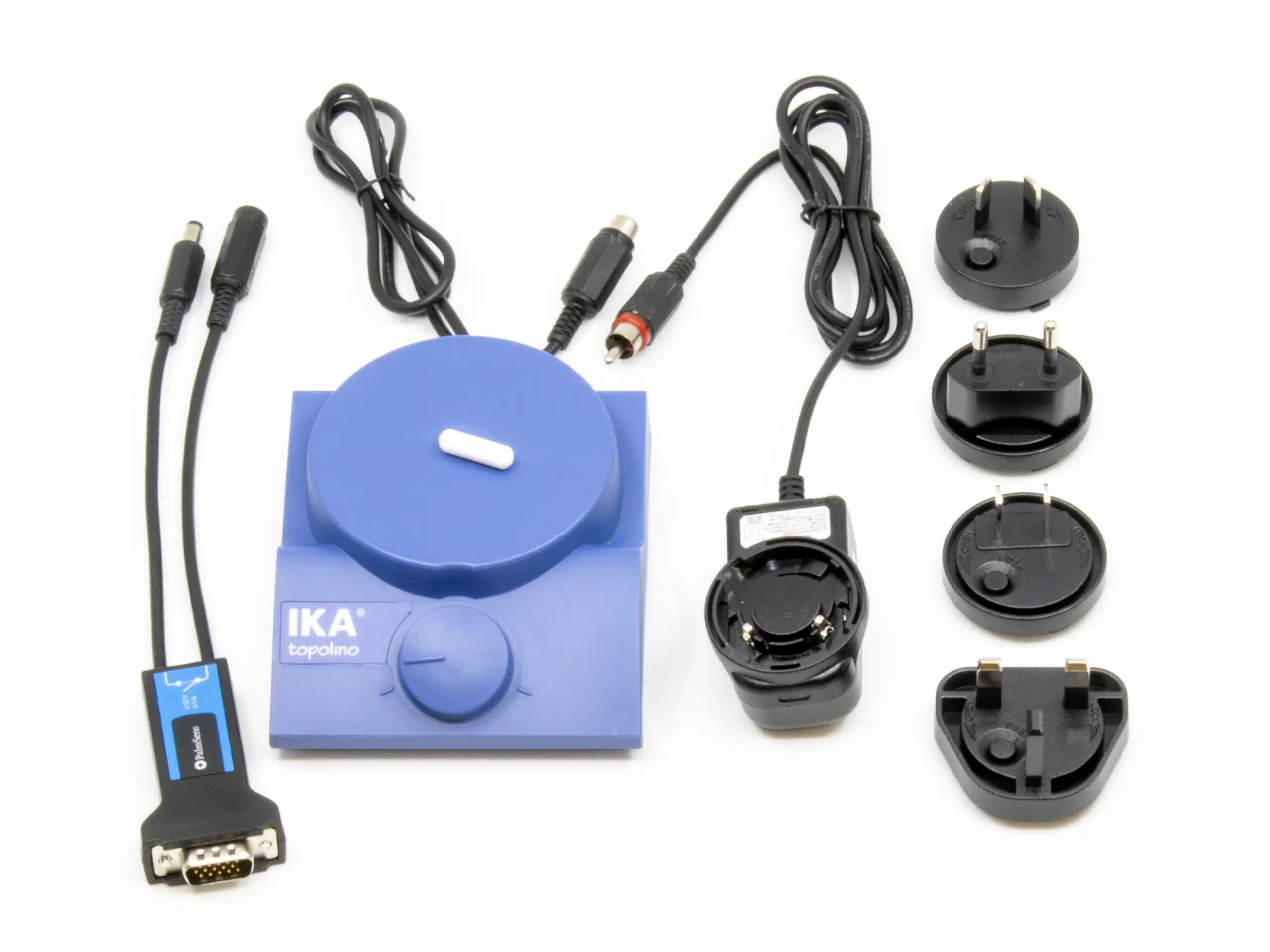

    Extremely convenient magnetic mini-stirrer for mixing quantities up to 250 ml. This stirrer comes with a switch box for your PalmSens enabling your potentiostat to control the stirrer. The stirrer is automatically used during the depositing phase or for example switched on or off by using a script in the scripting window for a user defined time during the measurement.

    • Durable, brushless motor
    • Infinitely variable speed range
    • High magnetic adhesion

    Specifications

    • Compatible with PalmSens3, PalmSens4, EmStat 3 Blue
    • Number of stirring positions 1
    • Stirring quantity max. per stirring position (H2O) [l]: 0.25
    • Motor rating output [W]: 0.8
    • Speed control: stepless
    • Speed range [rpm]: 500 – 1800
    • Stirring bar length max. [mm]: 30
    • Set-up plate material synthetic: (PP)
    • Set-up plate dimensions [mm] Ø: 80
    • Dimensions (W x H x D) [mm]: 95 x 37 x 115
    • Weight [kg]: 0.484
    • Permissible ambient temperature [°C]: 5 – 40
    • Permissible relative humidity [%]: 80
    • Protection class according to DIN EN 60529 IP 21
    • Voltage [V]: 100 – 240
    • Frequency [Hz]: 50/60
    • Power input [W]: 10

    Downloads

    Name Type Last updated
    IKA topolino manual Automatic stirrer IKA topolino manual Documentation 30-08-21
    IKA topolino datasheet Datasheet automatic stirrer Datasheet 30-08-21
