Description
Single screen-printed electrodes are based on a classical three-electrodes approach with one working electrode (WE), a reference electrode (RE) and a auxiliary (counter) electrode (AE or CE). Low-cost solution suitable for electroanalysis, flow systems, nanotechnology or biosensor development.
For the material of the working- and counter electrode, there is carbon or gold to choose from, with two types of carbon ink. The reference electrode is silver, also available with silver/silver chloride for the Carbon WE/CE. The electrodes layer is 350~380 μm thick. The working electrode has a diameter of 3 mm for the single SPEs and 2.5 mm for the dual SPEs. Advice per material and ink:

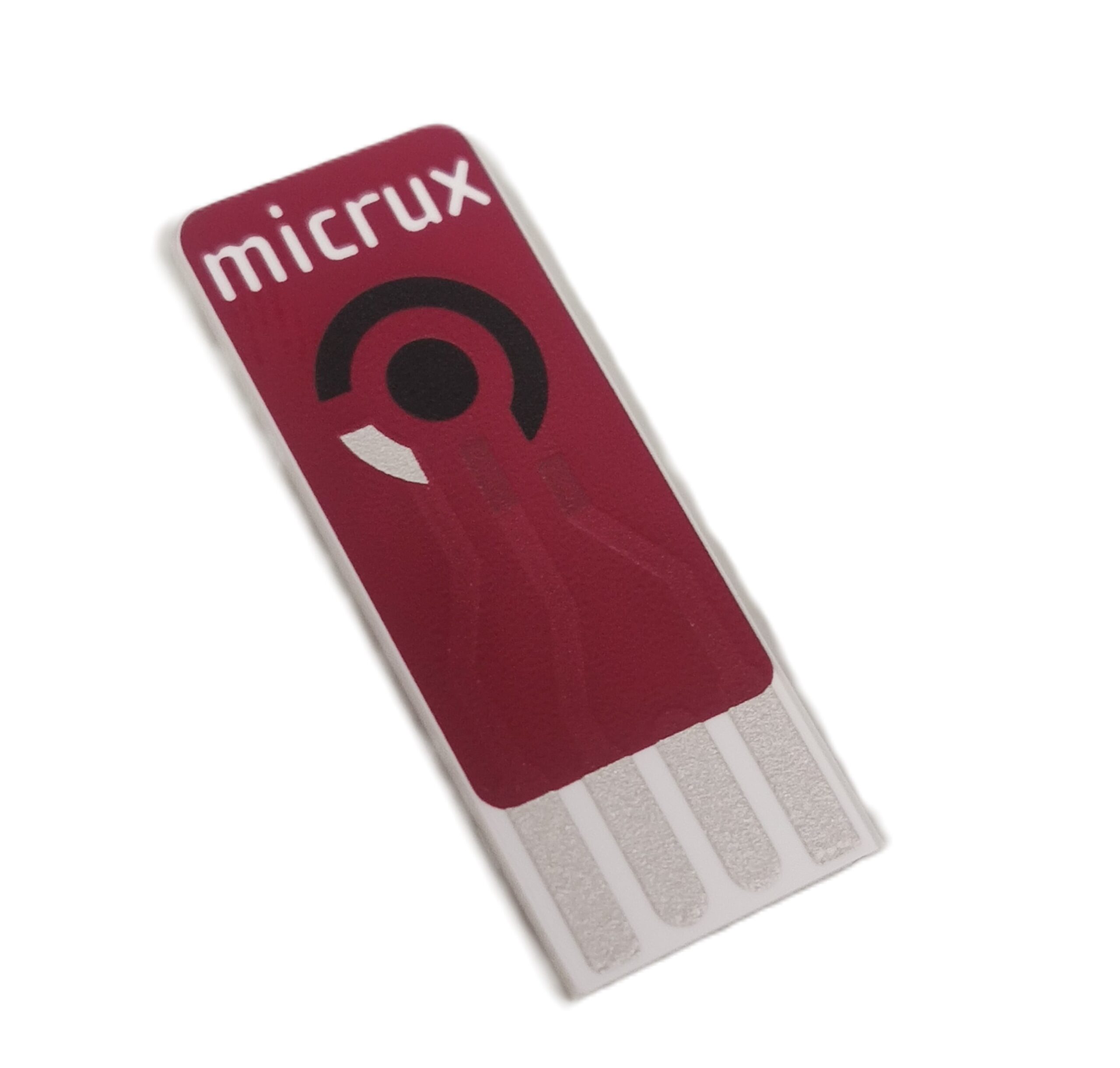

- Carbon – Performance ink: High-performance carbon-based screen-printed electrodes for the development of chemical sensors and biosensors. Ideal to work with microvolume, showing an excellent intra- and inter-electrode precision.
- Carbon – Low cost ink: Low-cost carbon-based screen-printed electrodes for basic electrochemical studies. Ideal to work with microvolume, showing excellent electrochemical performance with good reversibility when using cyclic voltammetry.

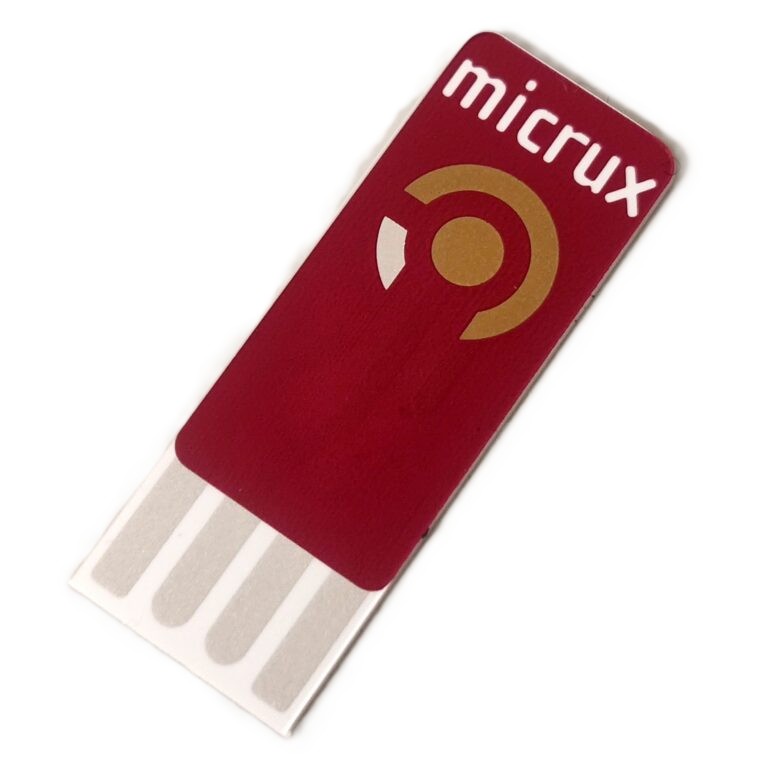

- Gold: Ideal to work with microvolume, showing an excellent intra- and inter-electrode precision. Useful for building self-assembled monolayers (SAM) and the development of chemical sensors and biosensors.
- Graphene: very low electrical resistance and a good scratch resistance for using in a wide variety of applications, such as the development of low-cost chemical-sensors and bio-sensors.
There are two types of substrate available:
- white flexible and high-resist PET
- Rigid ceramic

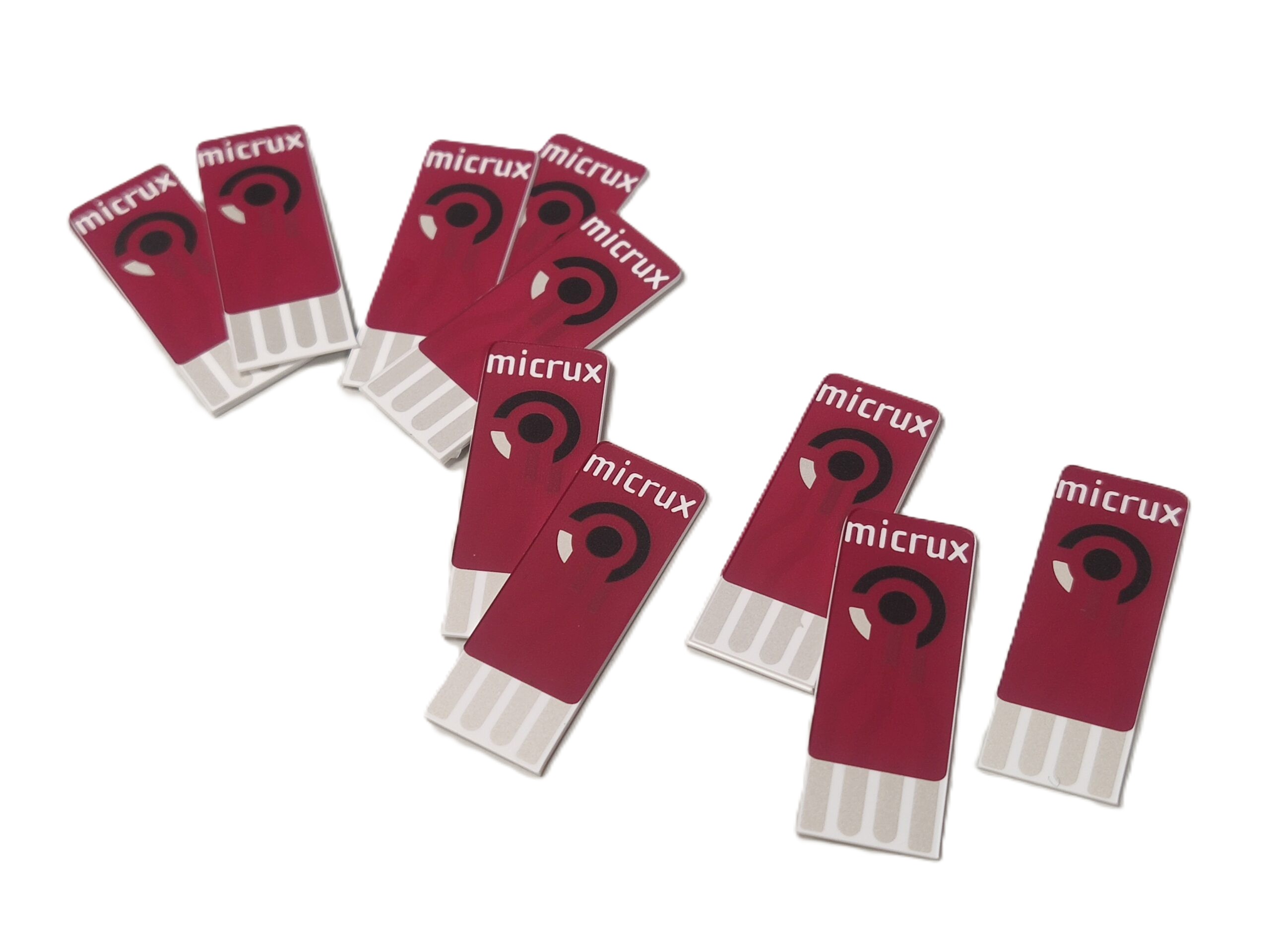

Sensors are packed per 50 in a box. You can connect a Micrux screen-printed electrode using the Micrux 4-electrode adapter.
More information is available at the specifications tab or here for the single WE SPE’s.
Options
WE/CE material | RE material | Support material | Product Reference |
Carbon – high performance | Silver | White PET | MX-ED-S1PE-C10 |
Carbon – high performance | Silver | Ceramic | MX-ED-S1PE-C10C |
Carbon – low cost | Silver | White PET | MX-ED-S1PE-C20 |
Carbon – low cost | Silver | Ceramic | MX-ED-S1PE-C20C |
Carbon – low cost | Ag/AgCl | White PET | MX-ED-S1PE-C21 |
Carbon – low cost | Ag/AgCl | Ceramic | MX-ED-S1PE-C21C |
Gold | Silver | White PET | MX-ED-S1PE-AU10 |
Gold | Silver | Ceramic | MX-ED-S1PE-AU10C |
Graphene | Silver | White PET | MX-ED-S1PE-GC20 |
Graphene | Silver | Ceramic | MX-ED-S1PE-GC20C |
Required adapter
A Micrux adapter is needed to connect the 4-pin sensors
You may also like…
Specifications
Downloads
Name | Type | Last updated | |
---|---|---|---|
Micrux Thick-film dual SPE Carbon electrode brochure | Datasheet | 28-03-23 | |
Micrux Thick-film SPE Gold electrode brochure | Datasheet | 28-03-23 | |
Micrux Thick-film SPE Carbon electrode brochure | Datasheet | 28-03-23 |
