PalmSens4 diagnostics

Follow these instructions if your PalmSens4 does not give expected measurement results.

Running PalmSens4 self-diagnostics in PSTrace

Requirements:

  • PSTrace 5.8 or later (for the latest version go to the menu in PSTrace: Help >> Check for updates)
  • PalmSens Dummy Cell with croc-clips and sensor cable (as shipped with PalmSens4)
  • PalmSens4 connected via USB-C cable with disconnected cell cable
1

 Start PSTrace and connect to the PalmSens4.

2

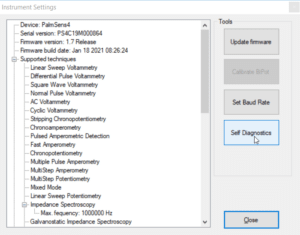

In the main menu select Tools >> Instrument Settings

3

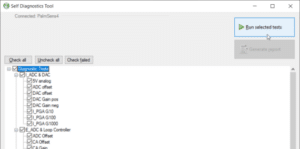

Click the button “Self Diagnostics”

4

Click the button “Run selected tests”

5

Follow the given instructions

In case errors are shown, please click “Generate report” and send the report to .
Please send any other information that might be relevant.
