FlexMedical Gold & Carbon Electrodes
High quality, single-use (bio)sensor
- Sputtered gold or carbon working and counter electrode
- Ag/AgCL reference electrode
- Delivered in a vial of 26 (gold) or 52 (carbon) electrodes
- <4% (carbon) or <2.4% (gold) inter electrode variability
- FlexMedical Solutions can mass produce a functionalized version of this sensor
You'll usually get an answer to your quotation request within one business day.
Description

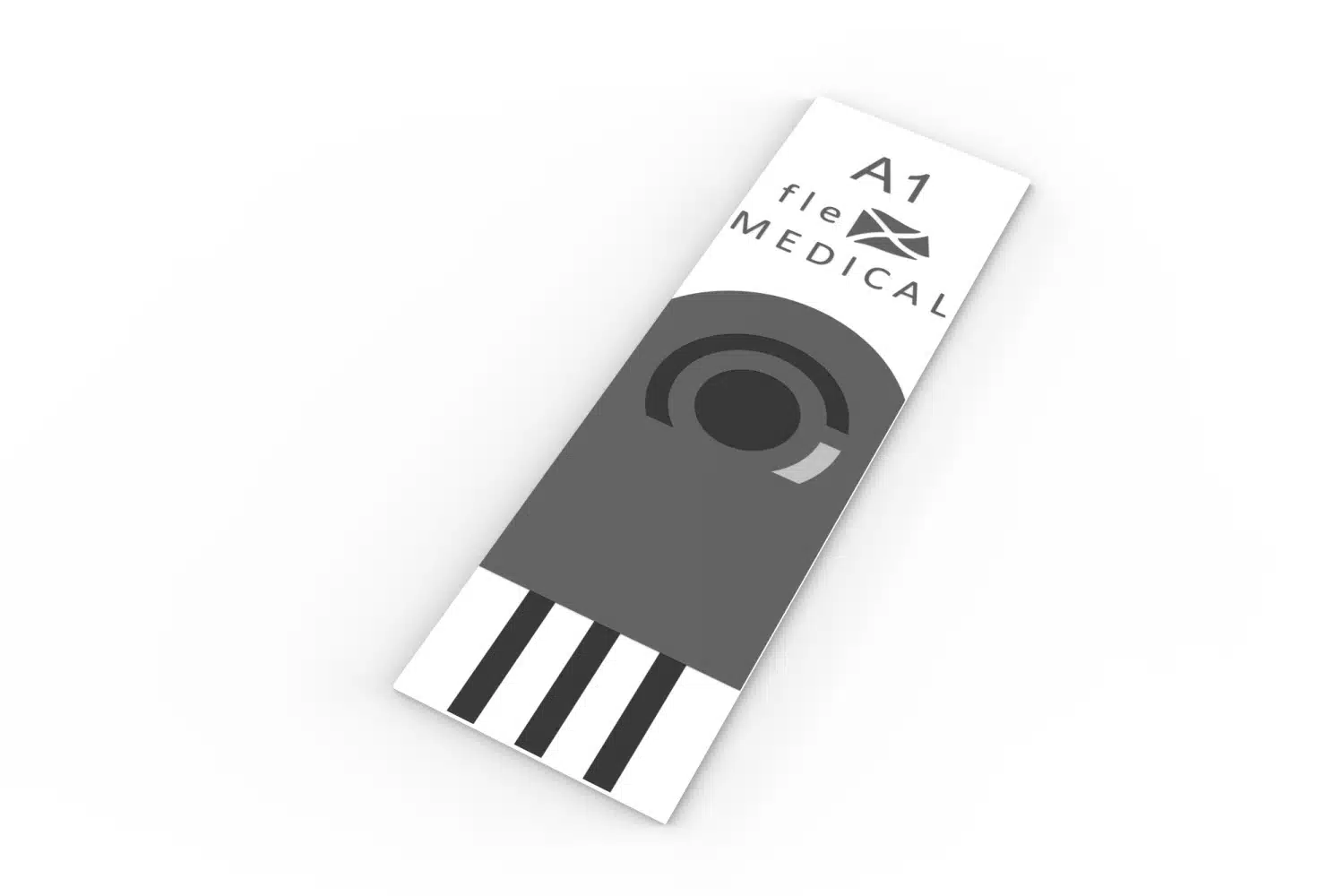

- The FMS-008 electrode features a screen-printed carbon working electrode and counter electrode

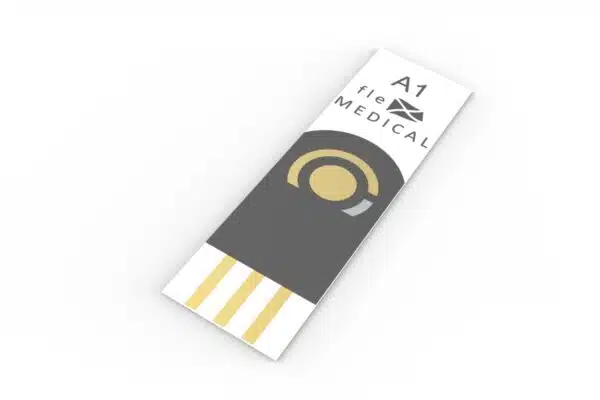

- The FMS-009 electrode features a sputtered gold working electrode and counter electrode
Both these electrodes are printed on a polyester substrate and are configured as a three-electrode system, incorporating a screen-printed Ag/AgCl reference electrode. The electrodes are designed for single use and are intended exclusively for research and development purposes.
Suitable Electrochemical techniques
- Chronoamperometry
- Cyclic Voltammetry
- Square Wave Voltammetry
- Differential Pulse Voltammetry
- Open Circuit Potentiometry
- Electrochemical Impedance Spectroscopy
Features
- <4% (carbon) or <2.4% (gold) inter electrode variability
- Packed per vial of 26 (gold) or 52 (carbon) sensors
- Support material: Polyimide substrate plus a PET stiffener.
- Sensor dimensions: 10mm x 34mm
- Compatible with PalmSens potentiostats
About Flex Medical Solutions
- FlexMedical Solutions is specialized in mass producing a functionalized version of this sensor for your biosensor application.
- Certified to ISO13485:2016 and designed to meet FDA 21CFR820 and cGmP requirements
Specifications
-
WE material
-
Surface modification
-
Brand
-
Amount of WEs
-
CE material
-
Electrode system
-
Combined RE and CE
-
Ø of the disc WE / mm
-
WE geometric area
-
RE material
-
Support material
-
Support dimensions / mm
-
Possible applications
Detection of Glucose by chronoamperometry, voltammometry and coloumbometrie, Electrolysis, Modification with biomolecules, aryl layers (diazonium chemistry) or similar, Detection of redox active species, Sensors Biosensors Immunosensors, Stripping Square Wave Voltammetry for Heavy Metal Trace Detection
-
Sensor type
Sensor adapter
Connect your sensor to your device
You may also like…
Downloads
| Name | Type | Last updated | |
|---|---|---|---|
| FlexMedical Solutions – Screen-Printed Gold Electrodes Datasheet This document contains the technical datasheet of the FMS-009 electrode, which features a sputtered gold working electrode and counter electrode on a polyester substrate. | Datasheet | 23-04-25 | |
| FlexMedical Solutions – Screen-Printed Carbon Electrodes Datasheet This document contains the technical datasheet of the FMS-008 electrode, which features a screen-printed carbon working electrode and counter electrode on a polyester substrate. | Datasheet | 23-04-25 |
