ItalSens Sealed Cell
Sealed 3-electrodes Cell for Electrochemistry Research
- Completely sealed
- Compatible with ItalSens classic electrodes
- 2 extra holes for wires or purging
You'll usually get an answer to your quotation request within one business day.
Description

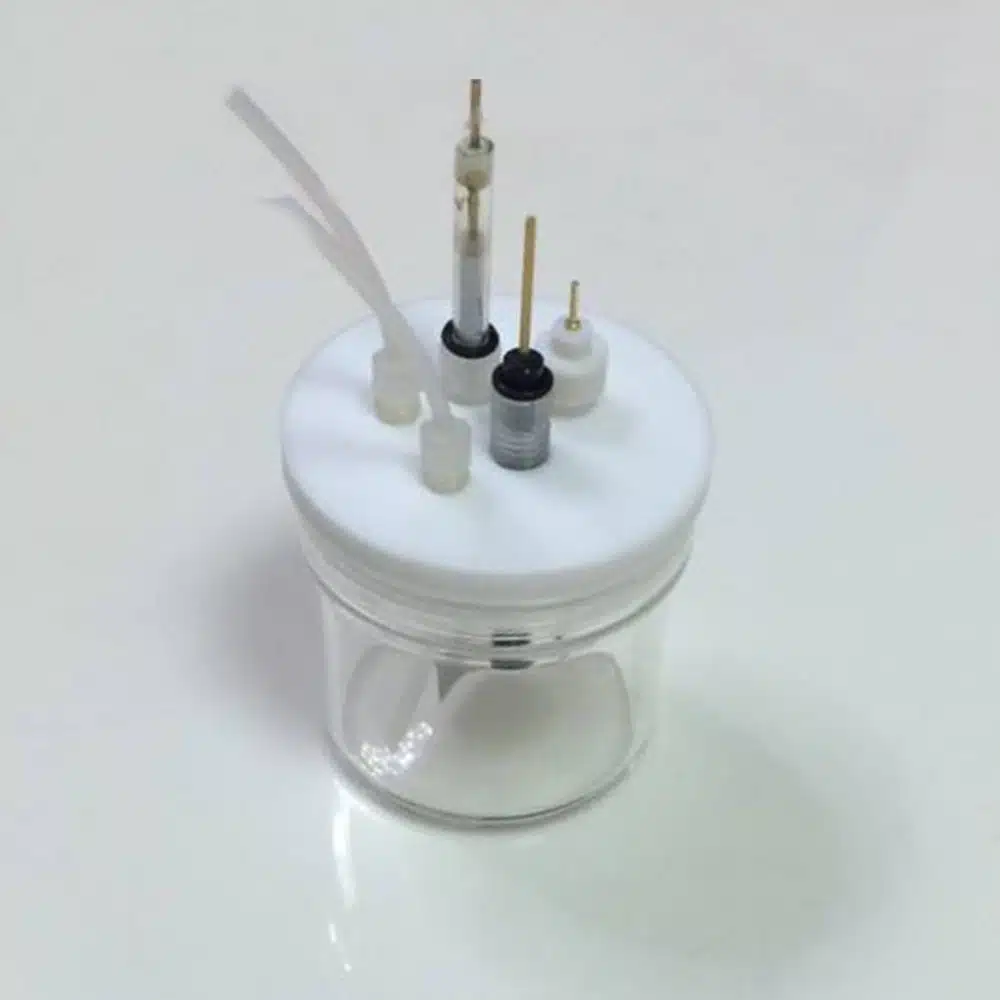

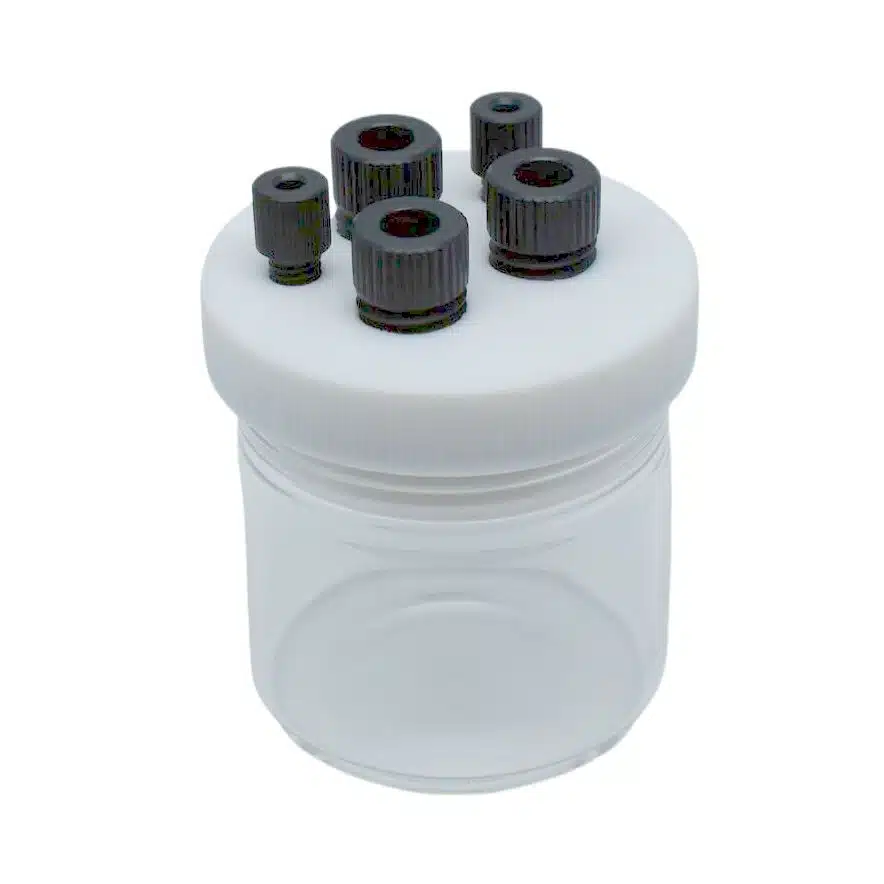

The glass cell is a 50, 100, 150 or 250 mL vessel with a tapper joint. The PTFE cell top for the ItalSens glass cell has holes to allow a convenient placement of electrodes:
- 2x 6.5 mm for WE and CE
- 1x 5.8 mm for RE
- 2x 2 mm for wires or purging
These sizes are compatible with ItalSens classic electrodes. This setup is a convenient and economical way to set up your electrochemical cell.
Electrodes are not included in the set.
Reference:
- IS-SCELL_50: 50ml sealed cell, internal dimensions: 43×34 mm
- IS-SCELL_100: 100ml sealed cell, internal dimensions: 48×63 mm
- IS-SCELL_150: 150ml sealed cell, internal dimensions: 53×70 mm
- IS-SCELL_250: 250ml sealed cell, internal dimensions: 68×78 mm
Specifications
-
Dimensions49 × 49 × 70 cm
-
Brand
-
Accessory type
-
Capacity
-
Compatible with
EmStat Go, EmStat Pico, EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, Nexus, PalmSens2, PalmSens3, PalmSens4, Sensit BT
