Sensor Cable for BVT-AC9C SPE

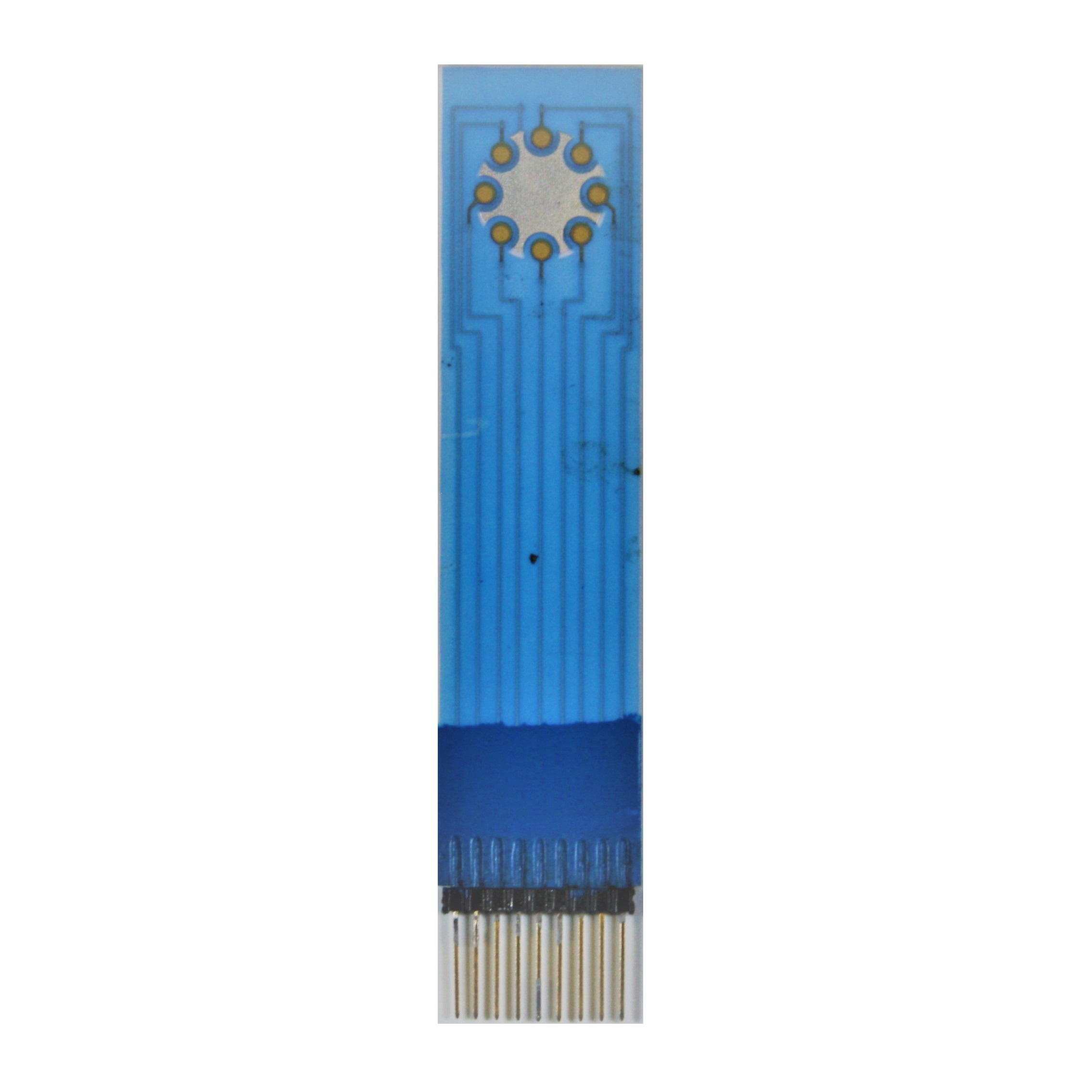

Connect one BVT sensor with eight working electrodes
- Connects to the BVT AC9C sensor
- 8 red male banana plugs
- 1 blue male banana plug
You'll usually get an answer to your quotation request within one business day.
Description
The sensor cable enables the use of the AC9C sensors with a multiplexer or multi-channel device.
Dimensions
- Length: 15 mm
- Width: 12 mm
- Banana plugs: 2 mm
Internal wiring
| Sensor electrode | Wire | Code |
| Working 1 | Grey | 1 |
| Working 2 | Yellow | 2 |
| Working 3 | Green | 3 |
| Working 4 | Red | 4 |
| Working 5 | White | 5 |
| Working 6 | Black | 6 |
| Working 7 | Brown | 7 |
| Working 8 | Blue | 8 |
| Reference | Shielding | R |
Further information is available on the product’s website.
Ref. BVT-KA9.S.5
