Instruments
This page shows an overview of our range
of instruments. The table below will help
you to compare the specifications of all
our potentiostats.
Filter products
Showing all 8 results
| PalmSens4 MultiPalmSens4 |
PalmSens3 (no longer available) |
EmStat3 EmStat3 Blue MultiEmStat3 EmStat3 4WE EmStat3 MUX |
EmStat3+ EmStat3+ Blue MultiEmStat3+ |
|
|---|---|---|---|---|
| General | ||||
| dc-potential range | ±5 V or ±10 V |
±5 V | ±3 V | ±4 V |
| compliance voltage | ±10 V | ±8 V | ±5 V | ±8 V |
| maximum current | ±30 mA | ±30 mA | ±20 mA | ±100 mA |
| Potentiostat (controlled potential mode) | ||||
| applied dc-potential resolution |
75 µV | 150 µV | 100 µV | 125 µV |
| applied potential accuracy |
≤ 0.1% < 1 mV offset |
≤ 0.2 % < 2 mV offset |
≤ 0.2 % < 2 mV offset |
≤ 0.2 % < 3 mV offset |
| current ranges | 100 pA to 10 mA (9 ranges) |
100 pA to 10 mA (9 ranges) |
1 nA to 10 mA (8 ranges) |
1 nA to 100 mA (9 ranges) |
| current accuracy | ≤ 0.1 % (FSR) | ≤ 0.2 % (FSR) | ≤ 0.5 % (FSR) |
≤ 0.5 % (FSR) |
| measured current resolution |
0.006% of current range (5 fA on 100 pA range) | 0.01% of current range | 0.1% of current range | 0.1% of current range |
| max. scan rate | 500 V/s with 10 mV step |
500 V/s with 5 mV step |
5 V/s with 5 mV step |
5 V/s with 5 mV step |
| Galvanostat (controlled current mode) | ||||
| current ranges | 1 nA to 10 mA (8 ranges) | 1 µA to 10 mA (5 ranges) | N/A | N/A |
| applied dc-current resolution |
0.005 % of applied current range | 0.01 % of applied current range | N/A | N/A |
| measured dc-potential resolution |
75 μV at ±10 V 7.5 μV at ±1 V 0.75 μV at ±0.1 V |
150 µV | 100 µV | 125 µV |
| FRA / EIS (impedance measurements) | ||||
| frequency range | 10 µHz to 100 kHz or 1 MHz |
100 µHz to 50 kHz |
N/A | N/A |
| ac-amplitude range | 1 mV to 0.25 V (rms) |
1 mV to 0.25 V (rms) |
N/A | N/A |
| Electrometer | ||||
| electrometer amplifier input | > 1 TΩ // 10 pF |
> 100 Gohm // 4 pF | > 100 Gohm // 4 pF | > 100 Gohm // 4 pF |
| bandwidth | 1 MHz | 700 kHz | 35 kHz | 35 kHz |
| Other | ||||
| internal Bluetooth |  |
NO | (EmStat3 Blue) |
(EmStat3+ Blue) |
| internal storage | 8 GB | N/A | N/A | N/A |
Which EmStat instrument is suitable for me?

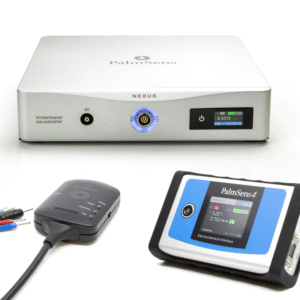

EmStat is available as single channel potentiostat. The more advanced EmStat Blue is wireless by means of its integrated Bluetooth radio and battery and has an auxiliary port for connecting extensions.

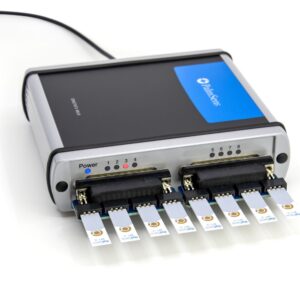

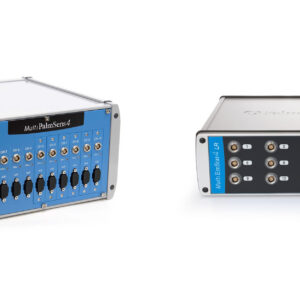

EmStat is also available combined with a multiplexer, as a polypotentiostat, or as multichannel potentiostat. The differences between these types of devices is explained here.
The EmStat and multiplexer boards are also available as OEM potentiostat for implementing EmStats in your device, e.g. in an e-QCM or e-SPR instrument.
