General Graphene – Carbon film Electrodes

Description

The C3 Electrode is a disposable sensing platform developed using a uniform and pure carbon film deposited directly onto alumina substrates via chemical vapor deposition (CVD). This method creates a pure carbon interface that is binders and additive free, supports efficient electron transfer, and consistent electrochemical performance. The C3 Electrode shows reliable behavior with clear peak separations and robust current responses, making it a solid choice for high-frequency applications and biosensing.

The C3 Electrode offers a strong platform for advanced electrochemical measurements and sensing applications, balancing innovative performance with practical reliability.

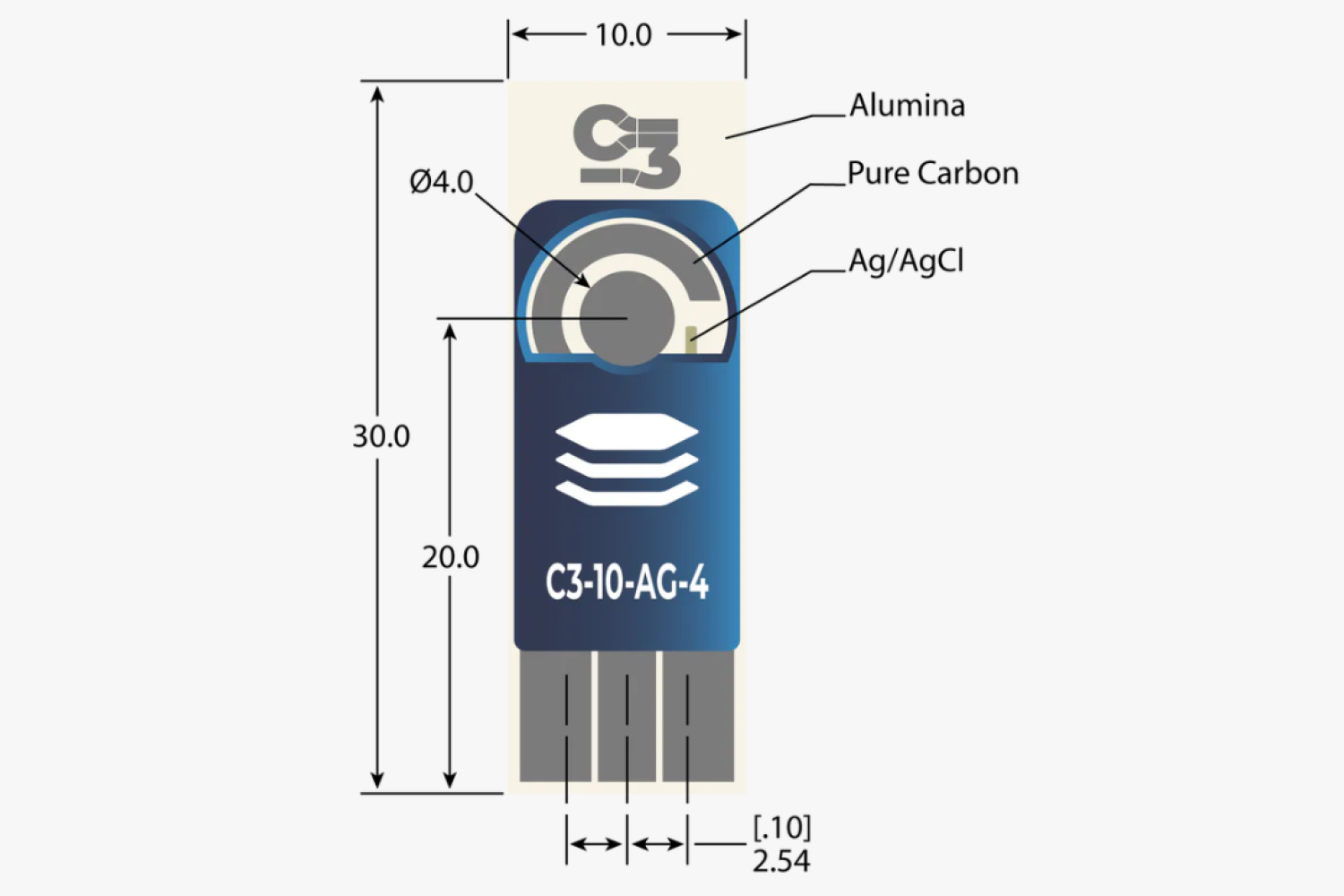

The sensor consists of a:

• pristine pyrolytic carbon-based working and counter electrode, and
• an Ag/AgCl reference electrode.

The pyrolytic carbon film exhibits more graphitic characteristics and consists of hundreds of graphene layers, with a thickness of approximately 2.3 ± 0.2 µm.

The sensor fits perfectly in all PalmSens instruments with a sensor connector. For instruments without these sensor connector, an adapter is needed.

Ref. GG-C3EQ20PS
