Redox.me – Optical Fiber Spectroelectrochemical Flow Cell Kit
Complete cell including three classic electrodes
- Adequate for UV-Vis Spectroelectrochemical experiments
- Variant for aqueous and organic solvent based experiments
- Compatible with Avantes fiber optics light sources and spectrometers
You'll usually get an answer to your quotation request within one business day.
Description

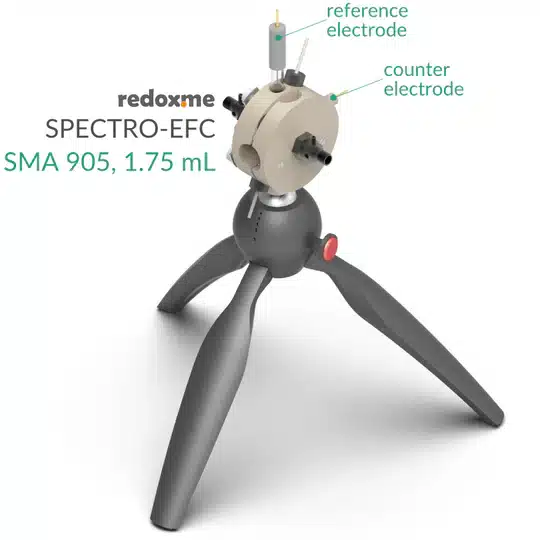

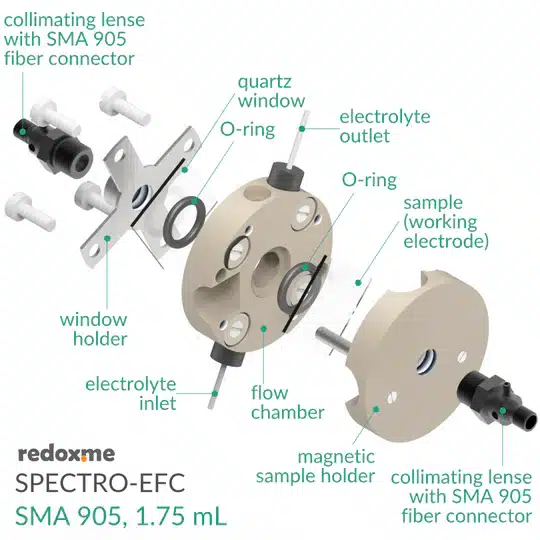

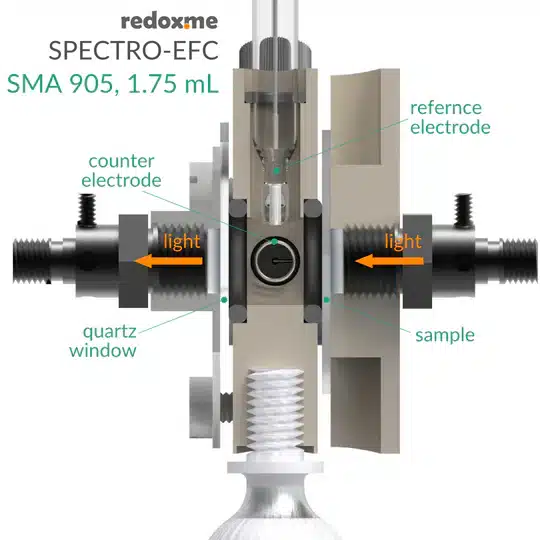

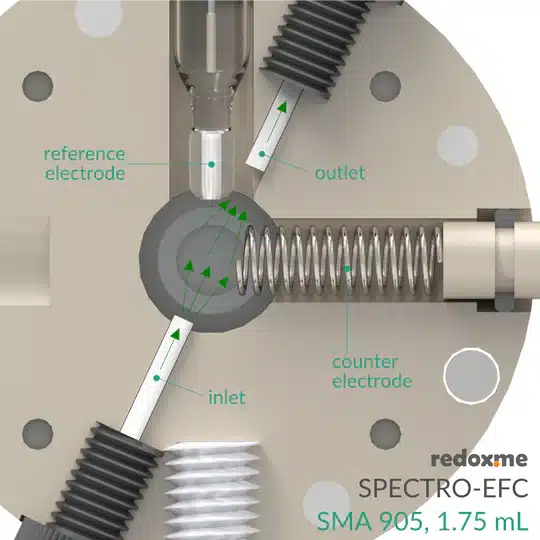

This is a horizontally mounted, multi-purpose spectroelectrochemical cell designed to be coupled with light sources and spectrometers (UV-Vis, NIR, IR) via optical fibers. It enables obtaining electrochemical and spectroscopic information from liquid sample or thin films in systems where variations in applied potential induce changes in observed spectra. Applied collimating lenses are curved optical lenses that enable parallel irradiation of the sample. Each lens is 5 mm in diameter, has a focal length of 10 mm and wavelength range of 185-2500 nm. The cell consists of a polyether ether ketone (PEEK) flow chamber equipped with a magnetic/screw mount sample holder, a screw mount quartz window holder and two different mini tripods. It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The cell is meant to be used with standard reference electrode having 6 mm in diameter and counter electrode either in the form of a rod or helix with 6 mm in diameter and 15 mm active length.
Specification
nominal aperture area: 0.5 cm2 for 10x10mm2 or 1 cm2 for 25×25 mm2
optical path length (electrolyte thickness): 12 mm
flow chamber volume: 1.75 mL
maximum substrate thickness: 4 mm
electrode plug diameter: 6 mm
minimum sample size: 10 mm x 10 mm (for 0.5 cm2), 17 mm x 17 mm (for 1 cm2)
fiber connector: SMA 905, 6.35 mm ferrule
irradiated spot size: 5 mm in diameter, 19.6 mm2 area.
Intrastat data:
HS Code: 90275000
Country of Origin: Sweden
NET weight: 300 g
Setup includes:
1 x Spectro-EFC, SMA 905, 1.75 mL – Optical Fiber Spectro-Electrochemical Flow Cell
1 x sample mount
1 x flow chamber
1 x quartz window
1 x window/fiber holder
2 x collimating lanes with SMA 905 optical fiber connector
1 x set of screws
1 x plug
1 x Manfrotto PIXI table tripod
1 x XS Bendy Flexible Tripod
1 x Metal Wire Auxiliary Electrode – 35HX15 0.6/235 mm (Platinum)
1 x Reference electrode (Ag/AgCl, or Ag/Ag+)
Specifications
-
Weight0.1 kg
-
Dimensions39 × 39 × 58 cm
-
Electrolyte type
-
Mount type
Magnetic mount, Screw mount
-
Sample size
-
Brand
-
Accessory type
-
Compatible with
EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT
-
Length / mm
-
Electrode diameter
-
Aperture size
-
Fiber connector
SMA 905 (6.35 mm ferrule)
-
RE material
-
CE material
-
Body / coat material
