Pete’s Multifunctional Holder – SPE & Three Electrode Hybrid Kit

Description

The SPE & Three Electrode Hybrid Kit supports screen-printed electrodes and/or traditional three-electrode measurement, providing flexibility for laboratories that work across multiple electrode formats.

Kit contents:

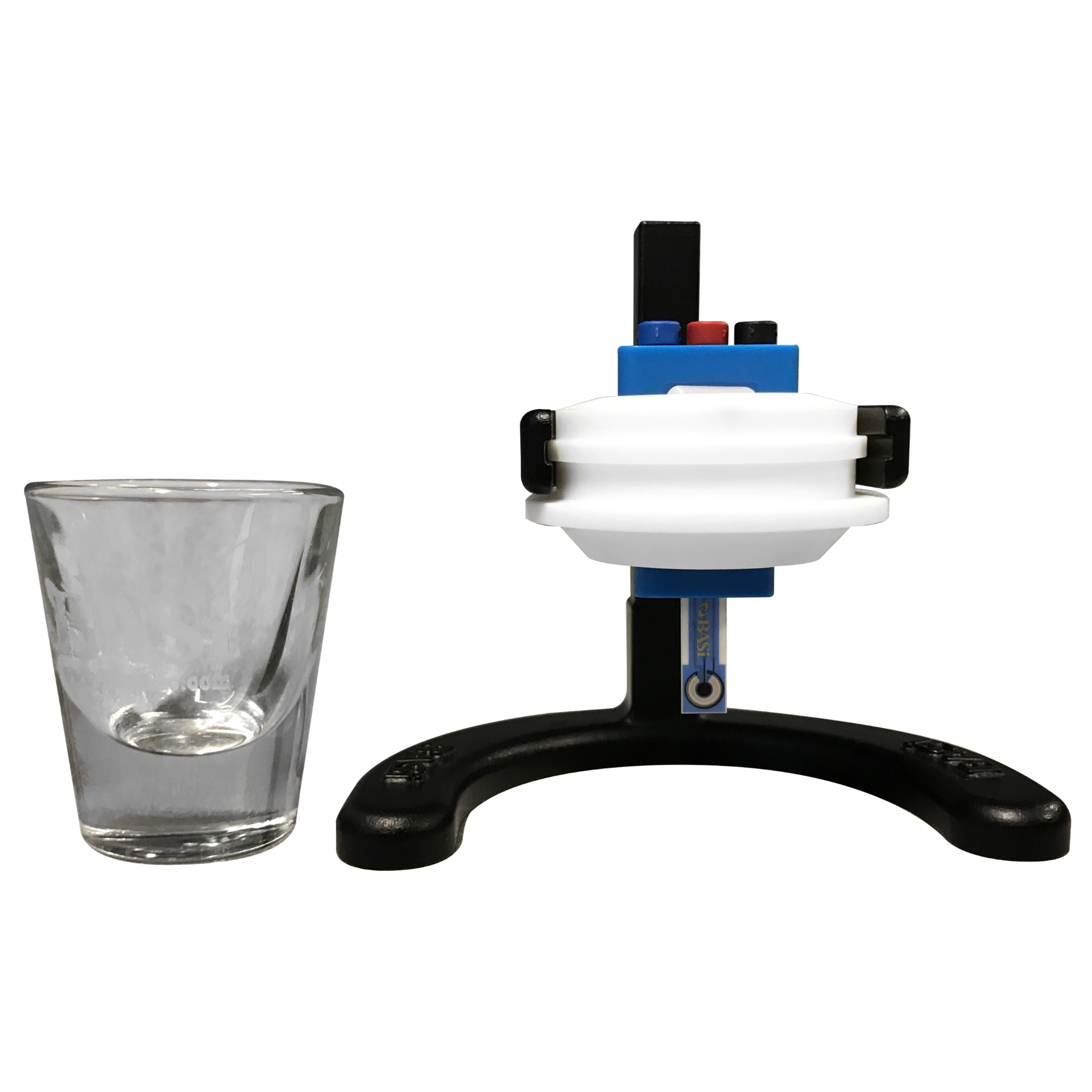

Pete’s Multipurpose SPE Cell Holder Kit (Ref. BASI-EF-1041):

• MW-4200 – Pete’s Multipurpose Cell Holder (1x)
• MR-3748 – SPE cell Top (1x)

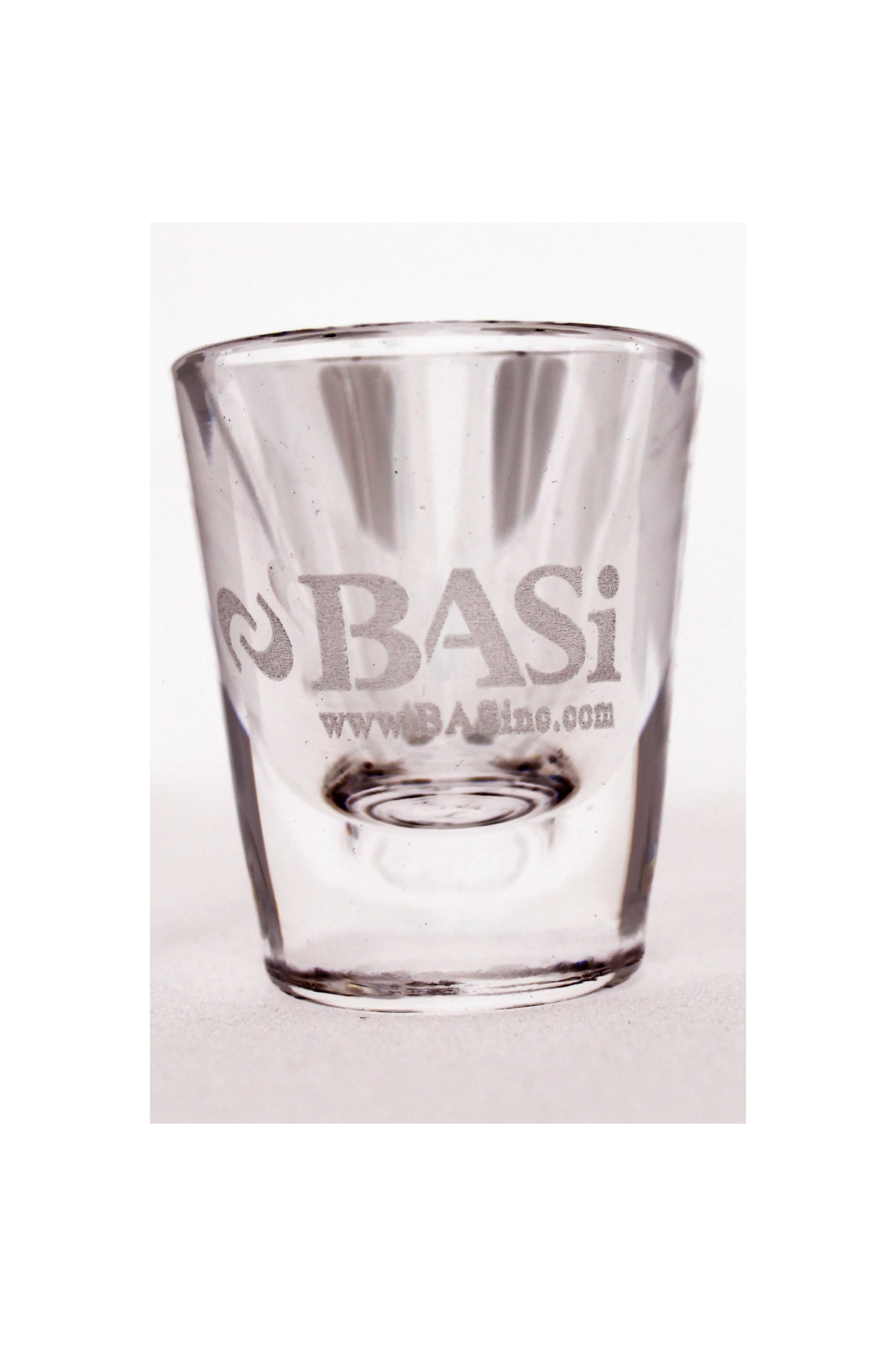

• MR-1208 – 10 mL glass vial (shot glass) (1x)

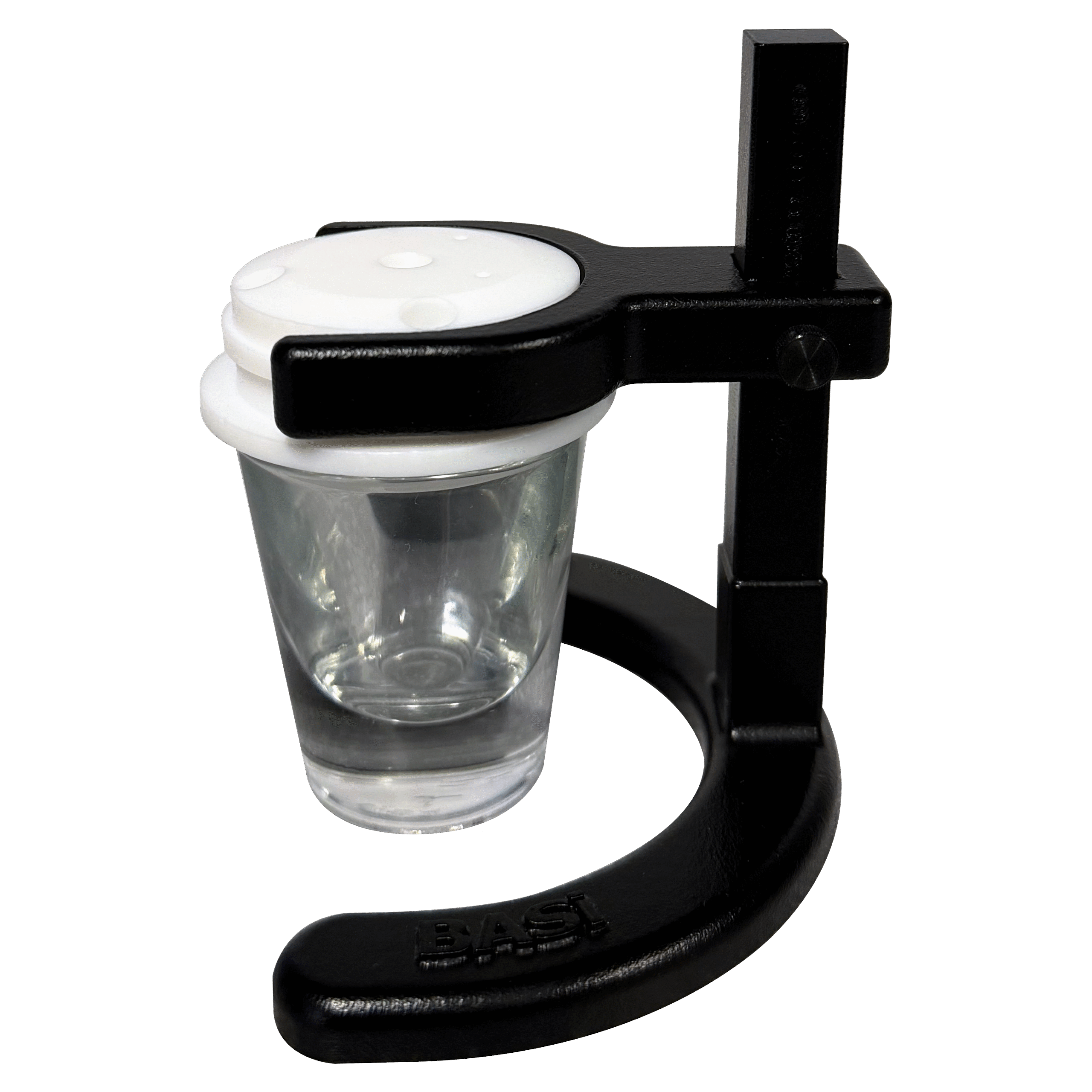

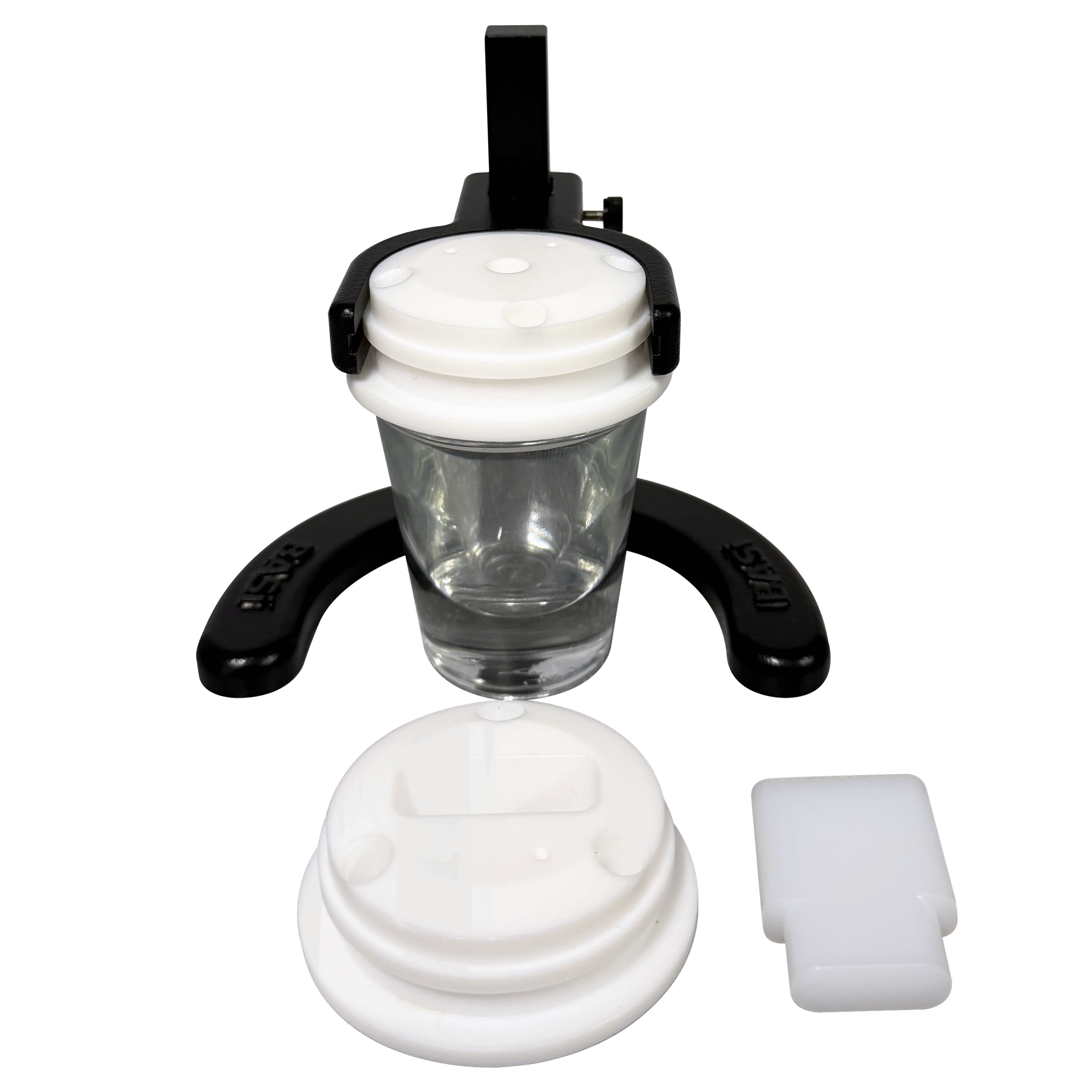

Pete’s Multifunctional Holder – Universal Three-Electrode Kit (Ref. BASI-EF-1042):

• MW-4200 – Pete’s Multipurpose Cell Holder (1x)
• MR-3749 – Universal type cell lid (1x)
• MR-1208 – 10 mL glass vial (shot glass) (1x)

If you choose a kit for both options, we will add the Universal  Three-Electrode Kit along with with SPE cell Top. The SPE version doesn’t include the SPE holder.

Pete’s Multifunctional Cell Holder Specifications (BASI-MW-4200):

• Self-standing design (no external stand rod or clamp required)
• Adjustable arm assembly (screw-controlled height adjustment)
• Quick snap-on / snap-off cell top interface
• Compatible with jacketed and non-jacketed BASi electrolyte vials
• Dimensions: 4.25 in (H) × 4.65 in (W) × 3.12 in (D)
• Weight: 0.137 lb (62.15 g)
• Holder Material: Nylon 6/6
• Material Properties (reference):
  • Melting Point: 185–262 °C
  • Heat Deflection Temp @ 0.46 MPa: 50–225 °C
  • Vicat Softening Point: 68–245 °C

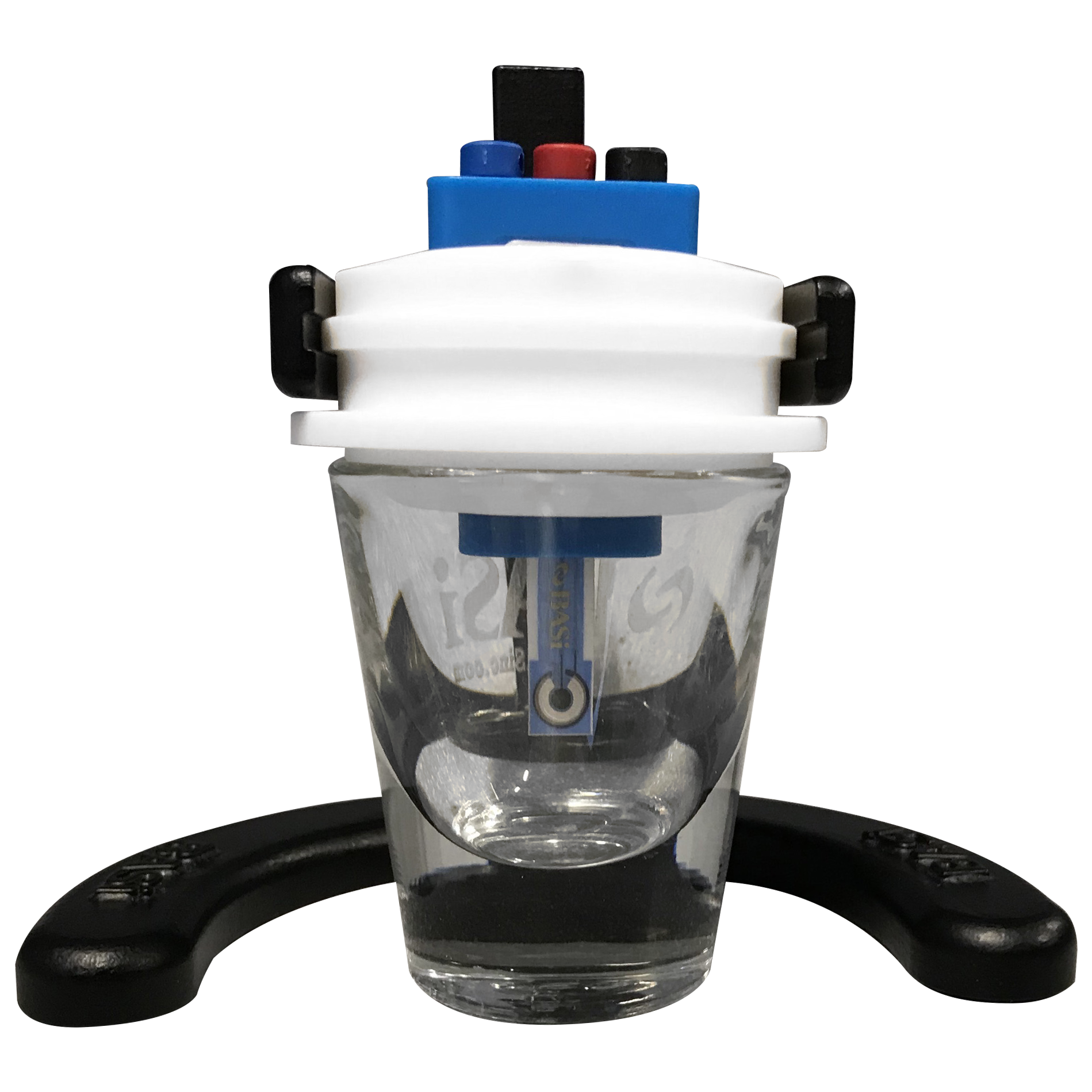

SPE Hybrid Cell Top Specifications (BASI-MR-3748):

• Material: Teflon
• Hole Diameter: 6.6 mm
• Weight: 0.169 lb (76.66 g)
• Ports for:
  • Purge in/out
  • Dosing
  • Multiple electrodes
  • Mechanical stirring

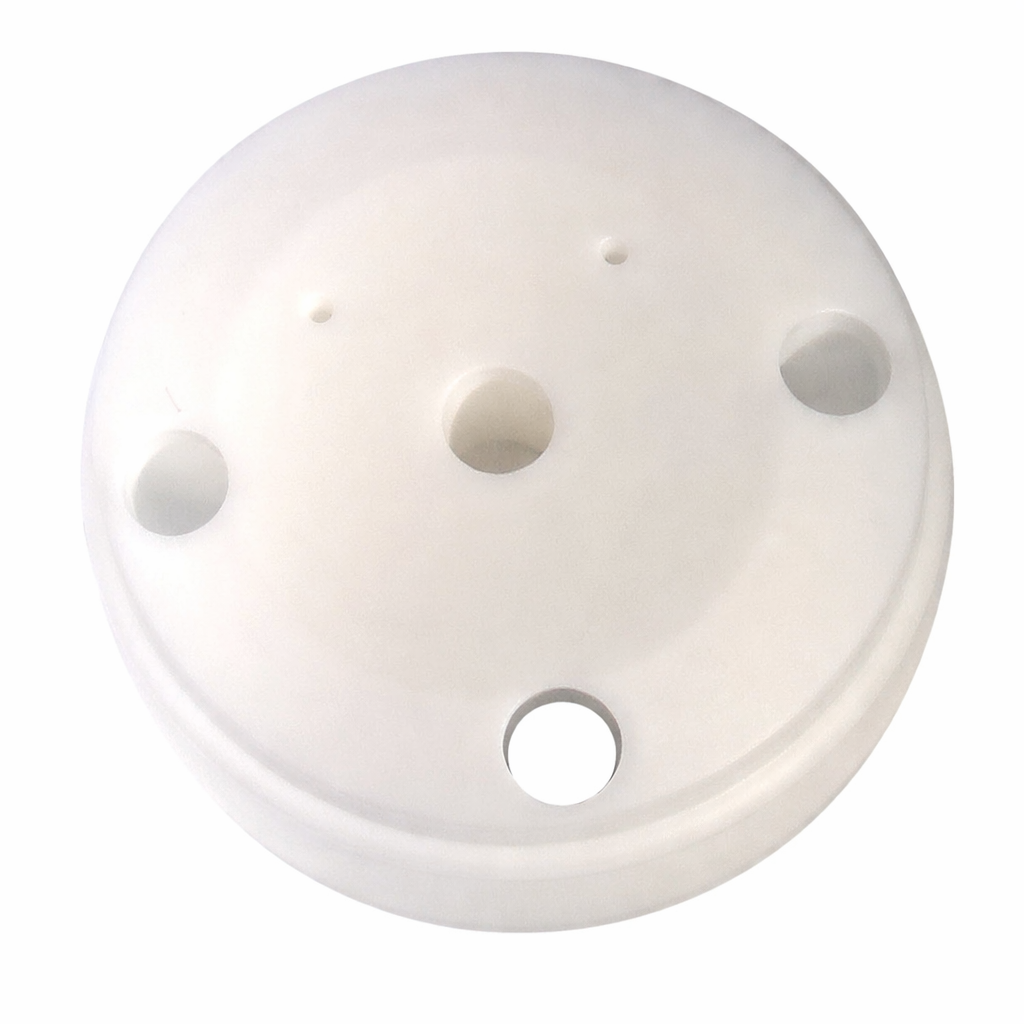

Universal Cell Top Specifications (BASI-MR-3749):

• Material: Teflon
• Hole Diameter: 0.261 in (6.6 mm)
• Weight: 0.199 lb (90.26 g)
• Ports for:
  • Purge in/out
  • Dosing
  • Multiple electrodes
  • Mechanical stirring

For spare parts, please ask in the comments field.
