Connection Module
User-changeable connection module for use with:
- EmStat4T
- EmStat4R
- EmStat GO
You'll usually get an answer to your quotation request within one business day.
Description

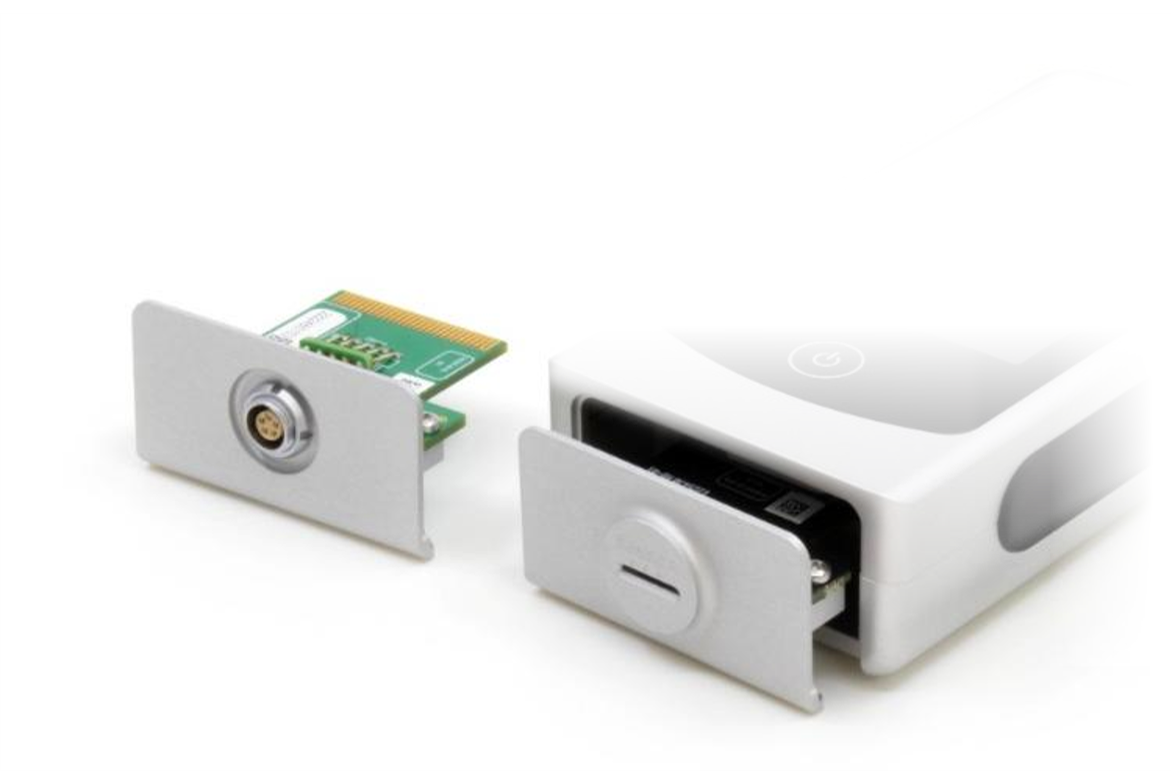

This is a user-changeable connection module for use with:

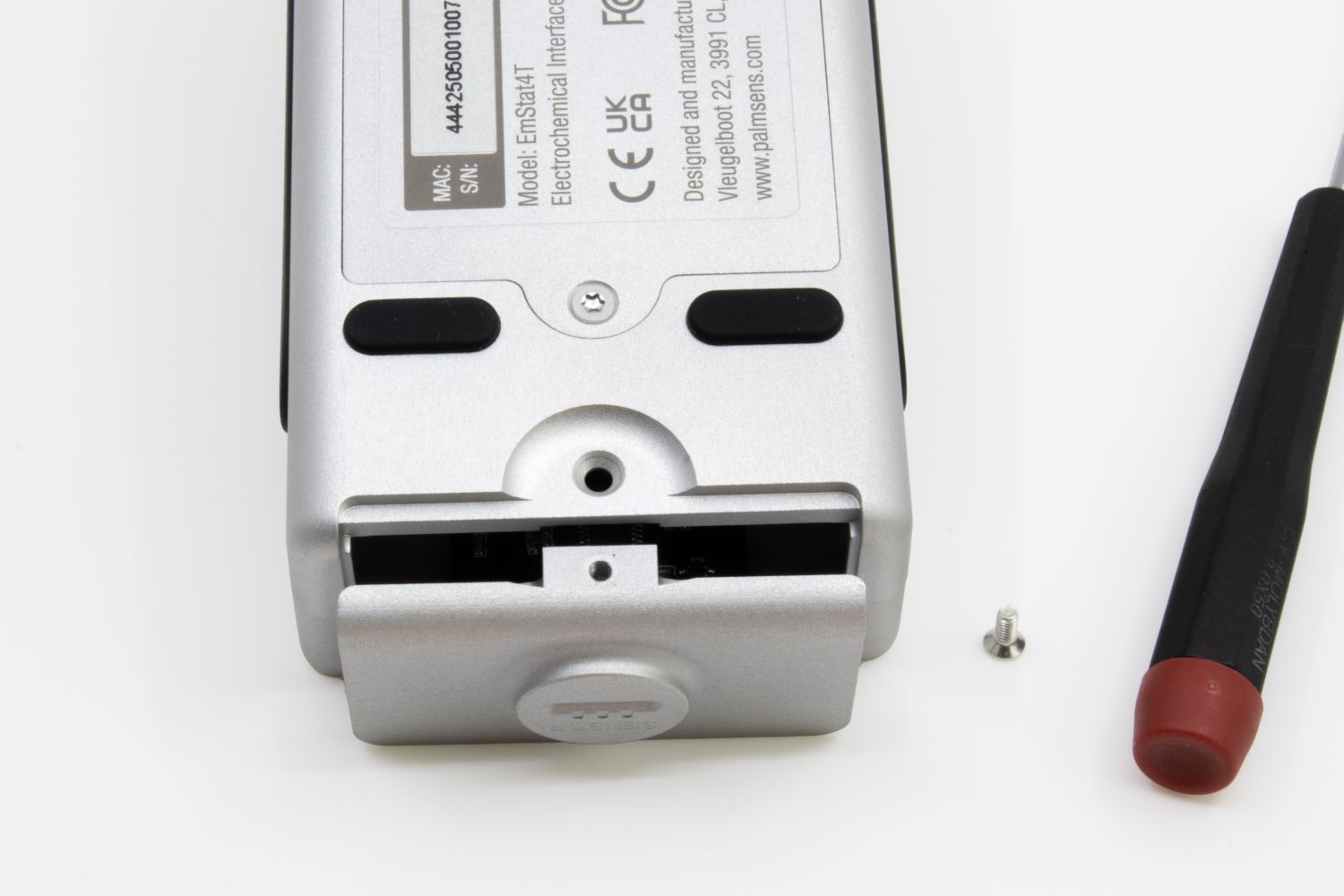

The module can be easily removed and replaced with just one screw on the bottom. Customized OEM solution is available on request.
The dimensions of the SPE connector make it compatible with a wide range of screen-printed electrodes that meet these dimensions, including models from BST, BVT, CTI, Integrated Graphene, ItalSens, OG Carbon, Dropsens, Orion, and Zimmer & Peacock.
List of Options
| Instrument Model | Interface | Product Reference |
| EmStat4T | SPE – Screen Printed Electrodes | H-ES4T-CM-SPE |
| Â | SNS – Cell Cable | H-ES4T-CM-SNS |
| EmStat4R | SPE -Screen Printed Electrodes | H-ES4R-CM-SPE |
| Â | SNS – Cell Cable | H-ES4R-CM-SNS |
| EmStat GO | SPE – Screen Printed Electrodes | K-ESGO-CM-SPE |
| Â | SNS – Cell Cable | K-ESGO-CM-SNS |
Specifications
| SPE version | |
|
electrode connections |
RE, WE, CE |
|
sensor pitch |
2.54 mm |
|
allowed sensor thickness |
Between 0.1 mm and 0.8 mm |
|
maximum sensor width |
10 mm |
|
Cell cable not included. |
|
| SNS version | |
|
electrode connections |
RE, WE, CE, GND |
|
compatible cable |
5-pin LEMO |
